# Telephone(MacOS)

This is the simplest client for users of Apple products. You can download it from the [link](https://apps.apple.com/ru/app/telephone/id406825478?l=en\&mt=12).

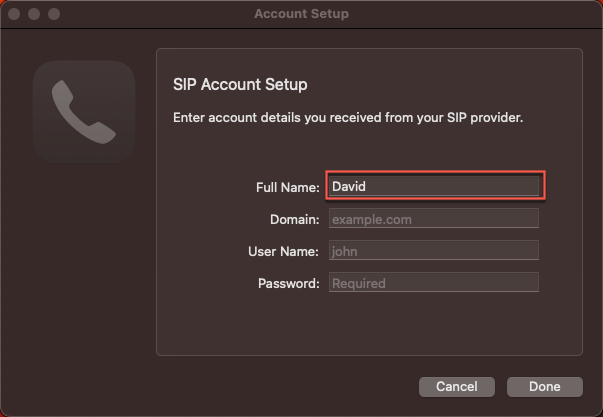

1. In the "**Full Name**" field, enter the name of the employee that will be displayed in the application

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2Fu3G7B39YdHHD2ynkvhxG%2Fimage.png?alt=media&#x26;token=d0da76bc-883b-4d0d-8ec2-9699ed0d46c1" alt=""><figcaption></figcaption></figure>

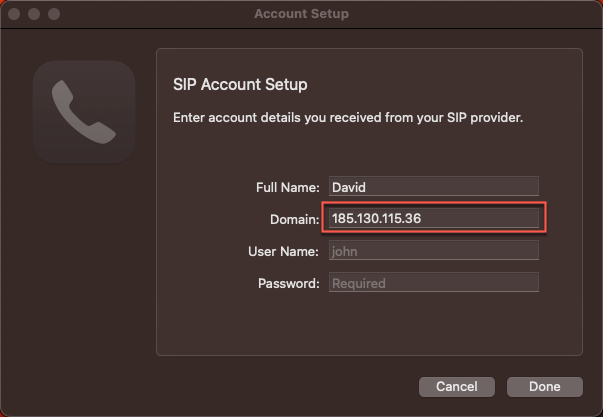

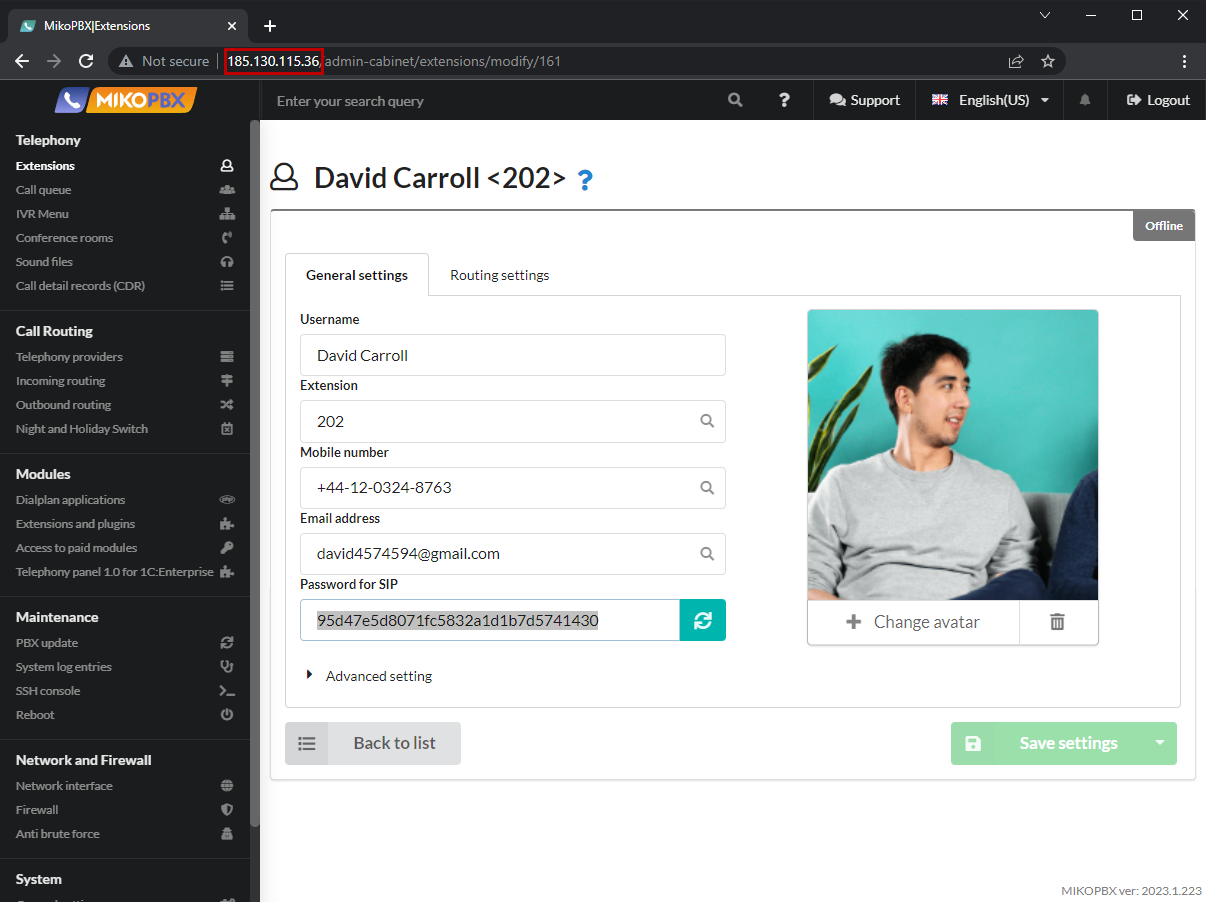

2. In the "**Domain**" field, enter the **IP address** of the MikoPBX to which the connection is being made

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2F2Cjh8x8XwzN0xfrBYSBY%2Fimage.png?alt=media&#x26;token=6e1efd60-1929-45ae-8eac-ac2f0d990cd1" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2F5W0K29E52ncAGL4OpbHs%2Fimage.png?alt=media&#x26;token=1fc43a81-5073-4433-b5b0-8b1f6149c1b9" alt=""><figcaption></figcaption></figure>

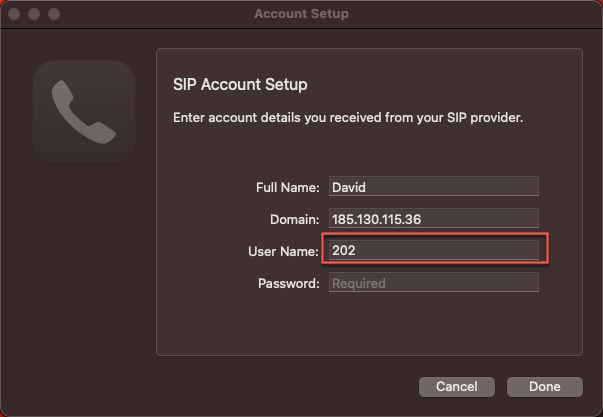

3. In the "**User Name**" field, enter the internal number of the employee

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FfllR9h7FzoSDjqm9WC7S%2Fimage.png?alt=media&#x26;token=12d009f6-9f33-4d3b-88d1-1be4f4e2bcfc" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FQ3sp4ftvCjInI5Pey8GB%2Fimage.png?alt=media&#x26;token=d9a324b1-18bf-42be-8642-ad993be499e2" alt=""><figcaption></figcaption></figure>

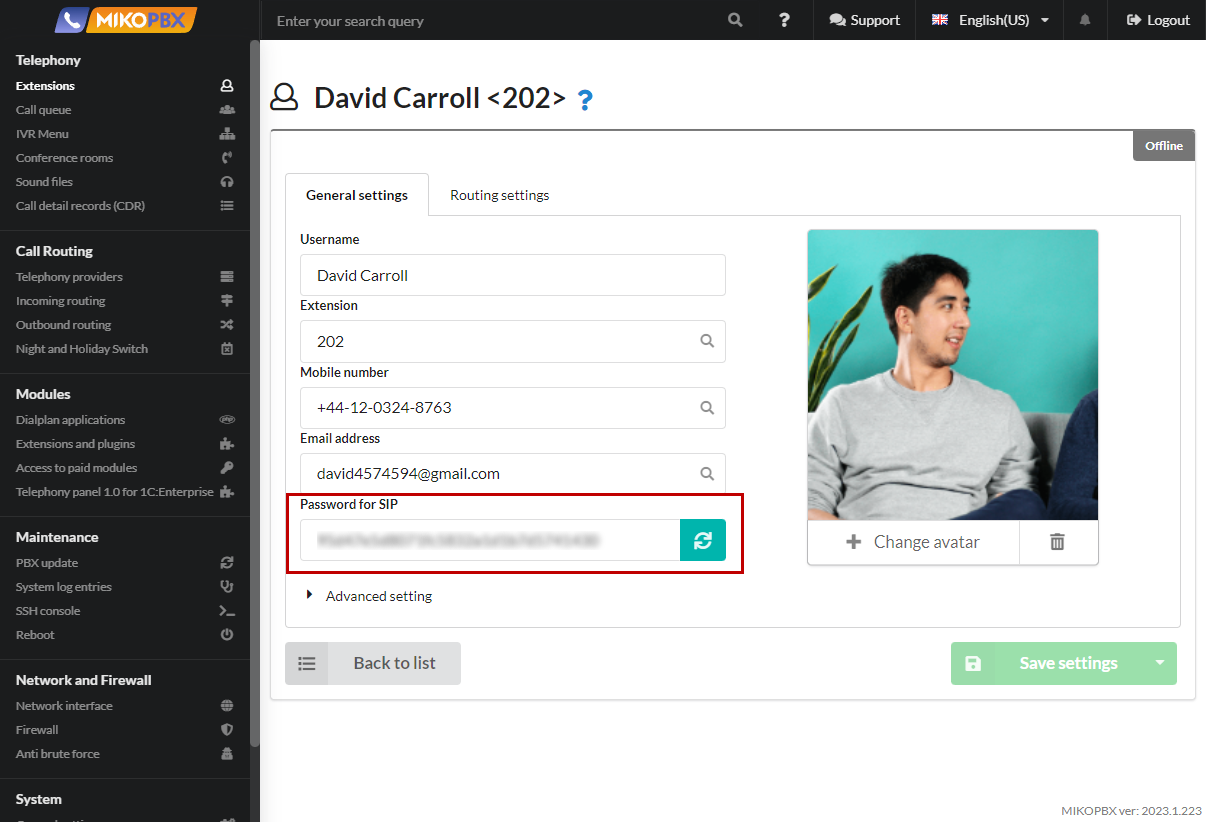

4. In the "**Password**" field, enter "**SIP password**"

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2F4JFOtxKk5UlX8GWcefZa%2Fimage.png?alt=media&#x26;token=fa3d8a6a-b4be-4a04-8a6b-91c772ed9b20" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FJ94VUM3P6KlK86ll2zRD%2Fimage.png?alt=media&#x26;token=011c7100-d187-4228-87b5-68c8bfd82810" alt=""><figcaption></figcaption></figure>

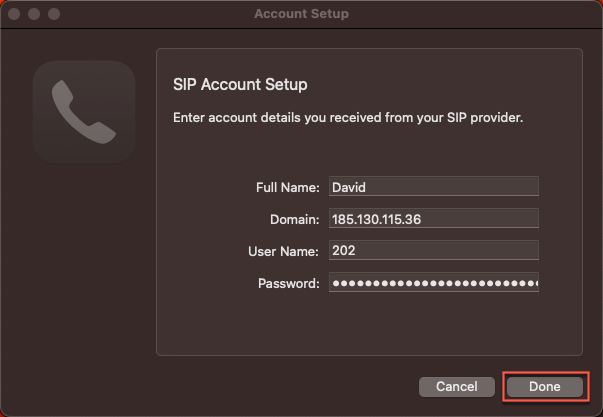

5. Click "**Done**"

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FEdYJLtGjMBloLi2nabDV%2Fimage.png?alt=media&#x26;token=d321526d-a647-44c2-860f-d38236decde8" alt=""><figcaption></figcaption></figure>

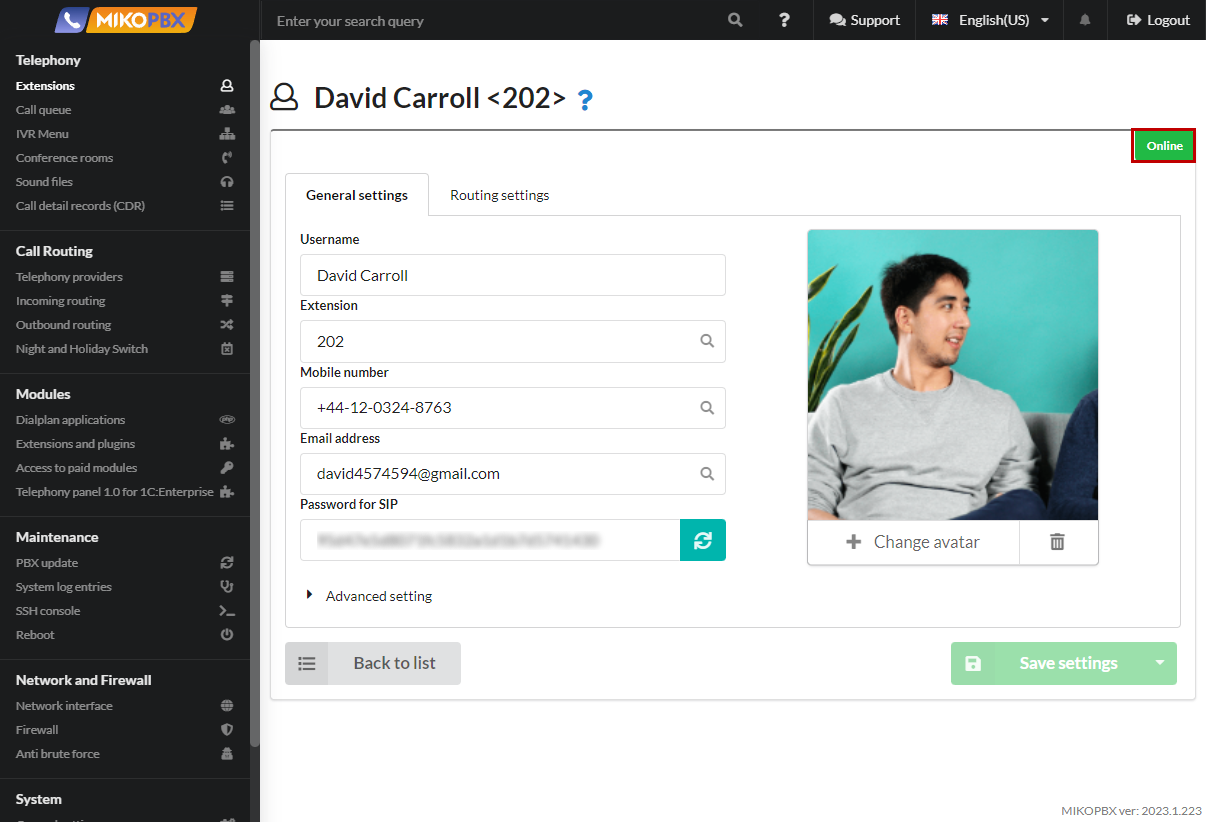

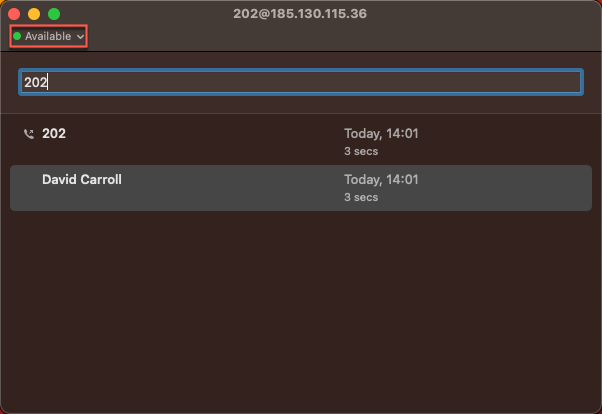

The green indicator on the top indicates successful authorization. Also, the status <mark style="background-color:green;">Online</mark> should be displayed on the PBX for this internal number.

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2Fe2HlggmB6TA9134Qb3Bw%2Fimage.png?alt=media&#x26;token=abc0f214-f1f0-48dc-b88f-02a78d40e367" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FjO4PdqcKXhFpONM9gnPB%2Fimage.png?alt=media&#x26;token=d453686d-eea8-480a-b9a1-ed109acc3a8a" alt=""><figcaption></figcaption></figure>
