  1. User manual
  2. Call Routing

Incoming routing

Description and configuration of incoming routing

Last updated 5 months ago

Was this helpful?

In this section, you need to create rules and templates for distributing incoming calls for providers created in MikoPBX. The rules for incoming calls describe the route of a call from the moment it arrives at the PBX to the moment it is completed. You can create an unlimited number of inbound routing rules. You can create several rules for one provider.

Additional examples of configuring incoming routing are available in the section.

Routing rule priority and default route

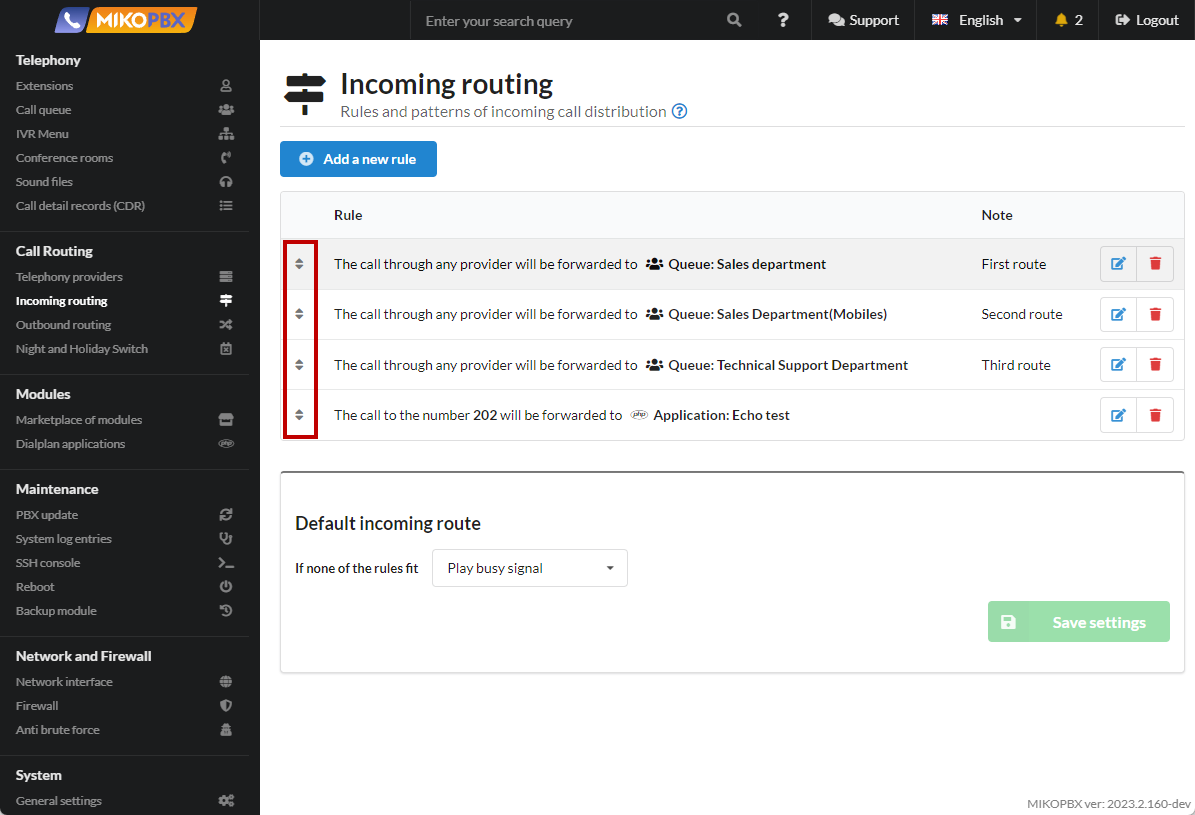

Rules are listed in order of priority. If no one answers the incoming call within the time interval specified in the rule, the call will be routed to the next priority rule. Rules can be moved up and down in the list, that is, their priority can be changed by dragging them by the arrows.

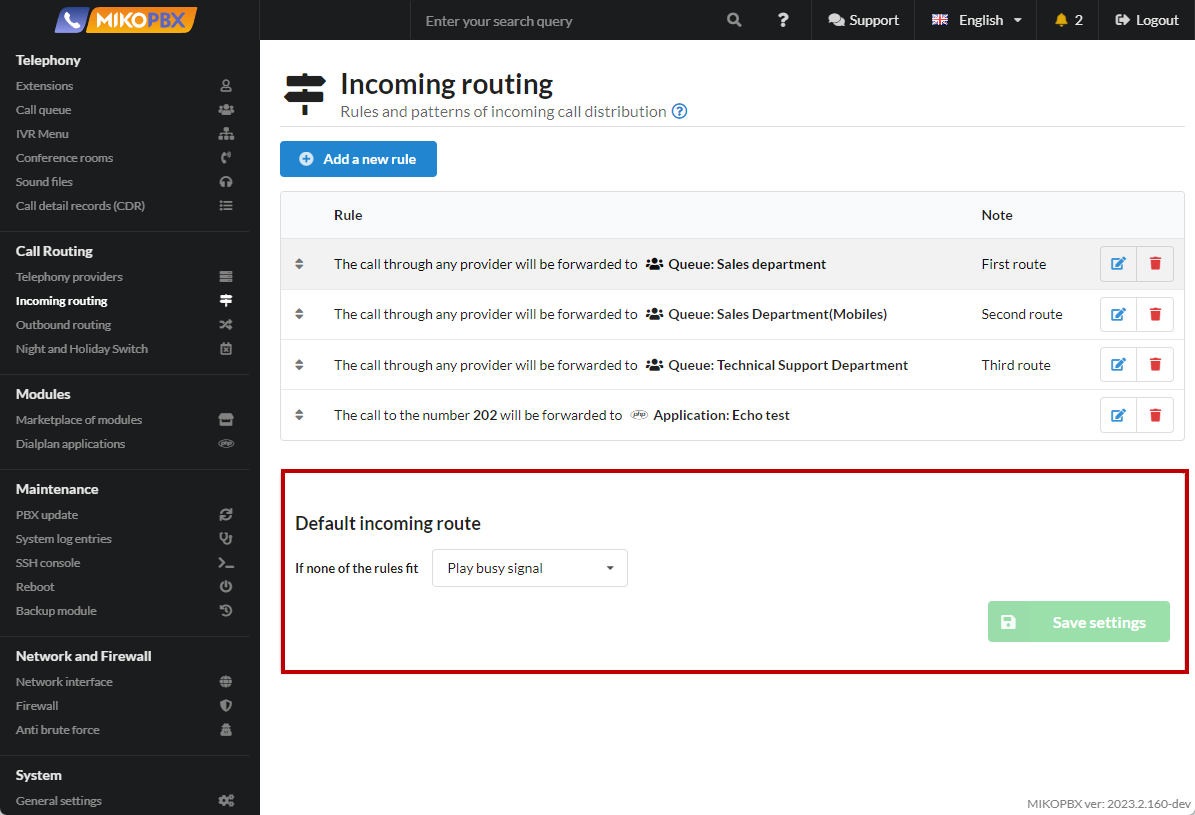

If the call is not answered according to any of the rules, the Default incoming route is used.

The following actions are available and can be specified as the default rule:

  • Play busy signal - the client will play a busy signal and the incoming call will be ended;

  • Hang up;

  • Redirect the call - the call can be transferred to a number that you can select in the field located to the right of the action. You can select an IVR menu, call queue, conference, or employee extension number as the number for transfer.

Multiple routes for one provider

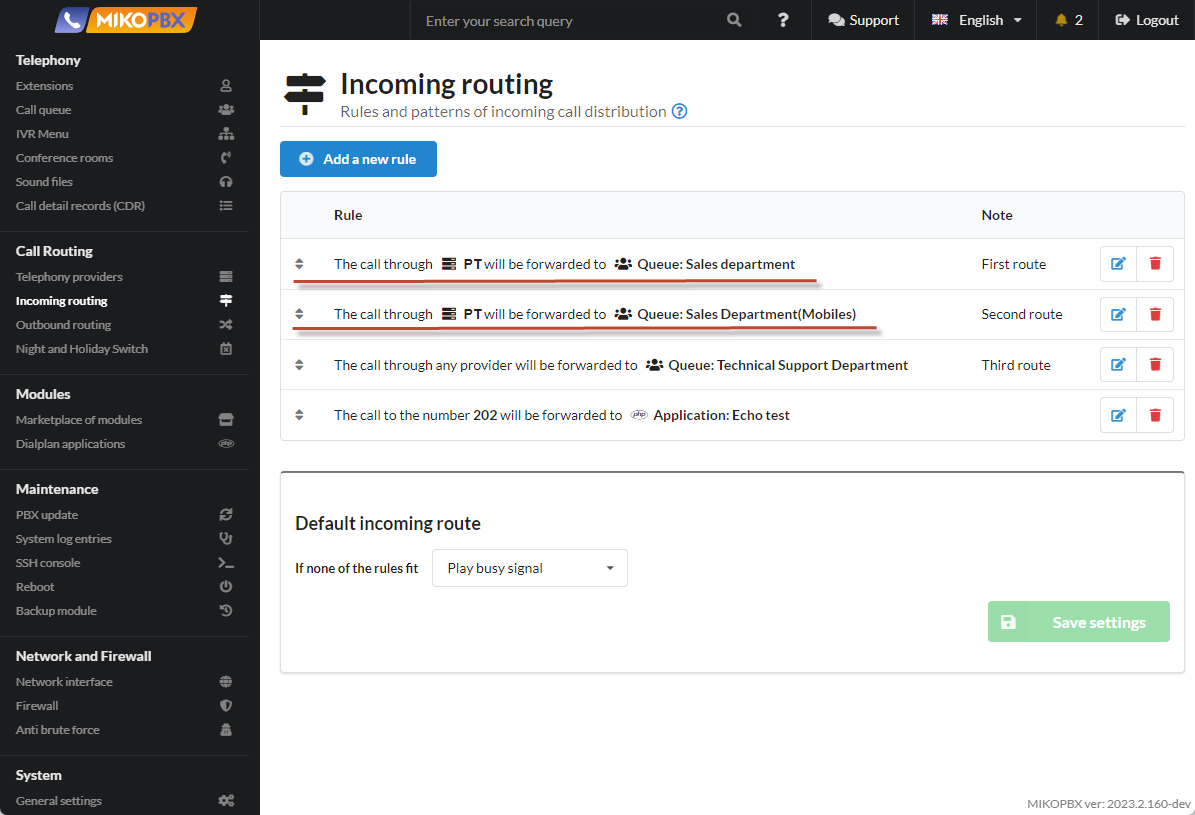

For one provider, you can describe several incoming routes.

First, the call goes along the upper route. If the client does not get through, then the call goes according to the lower rule (lower priority). If the client does not get through via the second route, then the call goes through the default route.

Create a routing rule

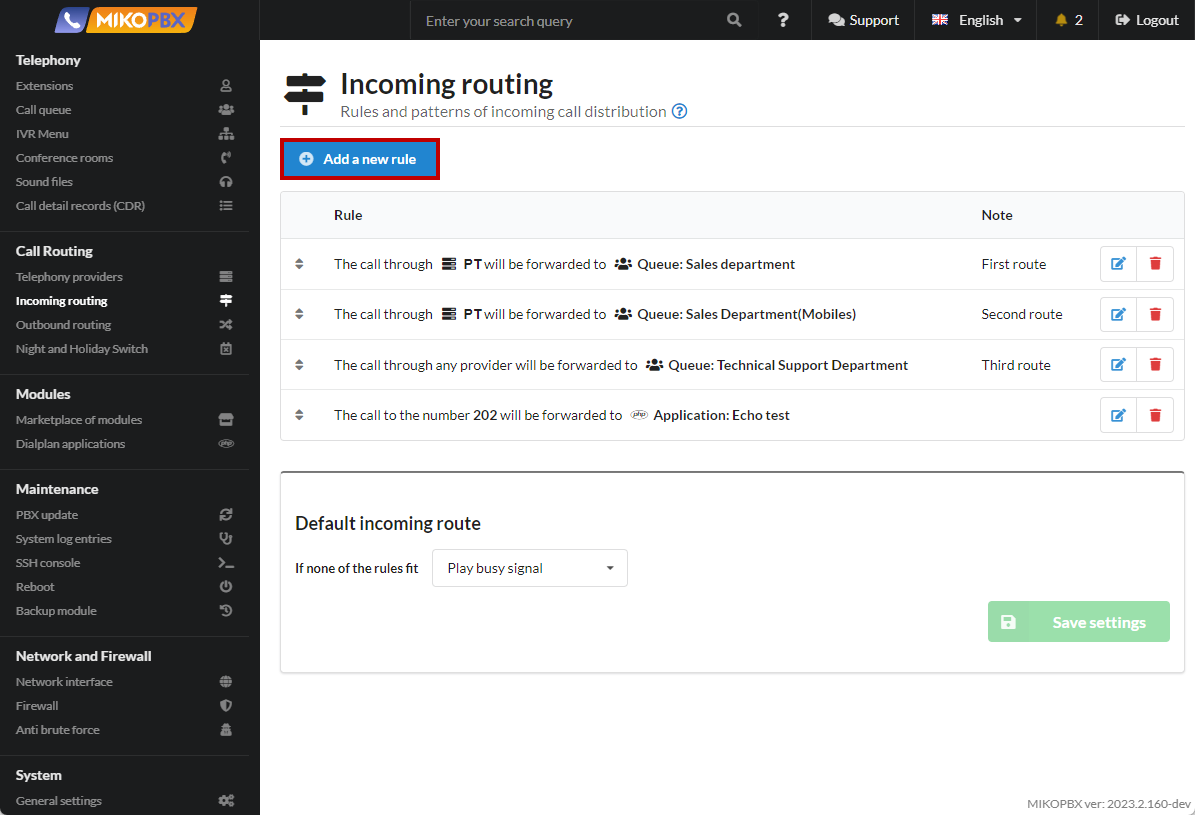

To add a new incoming routing rule, click the Add a new rule button.

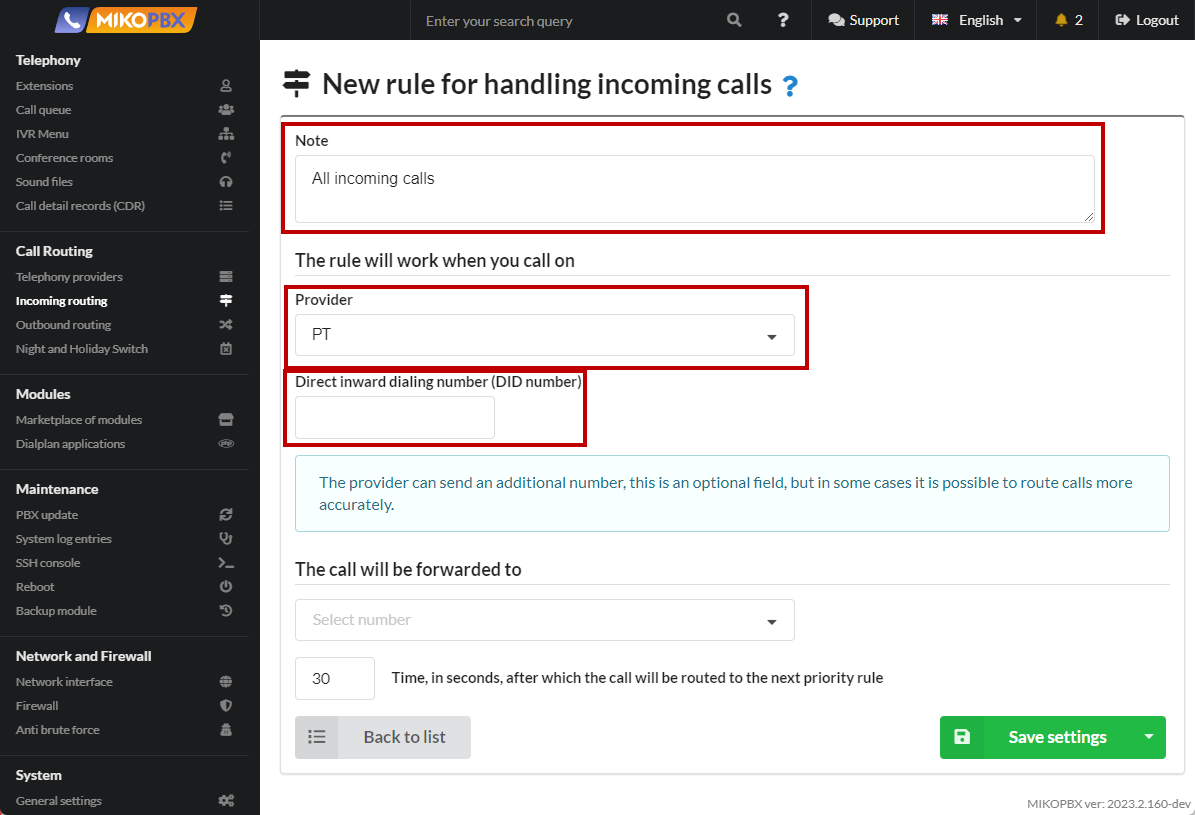

In the Note field, describe the route you want to implement. In the future, this will help you debug the call circuit.

Select the Provider for which you are creating a new incoming call distribution template.

The additional DID number is the number the client called you on. This field is optional and should be completed if you need to route calls more accurately.

At the next step, you need to indicate to which phone number the incoming call from the client will be sent. The telephone number can be IVR menu numbers, call queues, conferences, or employee internal numbers.

Specify the time during which the call will be sent to the phone number you specified.

If after the specified time interval no one answers the incoming call, the call will be routed to the next priority rule.
