VMware Fusion

Installing MikoPBX using VMware Fusion.

Creating a virtual machine

1. Creating a new virtual machine.

Button for creating a new VM

1. After downloading the latest version of the image (link), specify the ISO file with the installation distribution.

Click "Continue"

Choosing image page

1. Select the type of operating system Other Linux 5.x and later kernel 64-bit

Click "Continue"

Choosing verison of OS for VM

1. Choosing the Legacy bios type

Click "Continue"

Choosing the boot firmware for VM

1. Click "Finish"

Summary config

Connecting a new disk

1. After creating a virtual machine, wait for it to load

MikoPBX Console

1. Go to the section "[3] Reboot the system"

"[3] Reboot the system" element

1. Choose "[2] Shutdown"

Shutting down the system

1. After shutting down the virtual machine, go to Settings

Settings button

1. Select "Add device"

Add device button

1. Select "New Hard Disk"

Click "Add..."

New Hard Disk

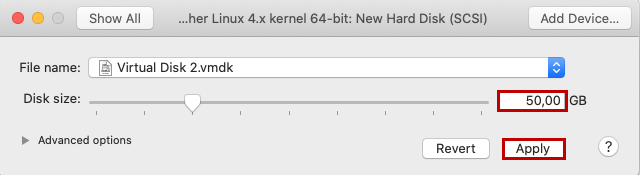

1. Choose the size of the hard drive (we recommend at least 50 GB)

Click "Apply"

Parameters for new hard drive

1 hour of recording conversations takes approximately 14mb on disk.

Installing MikoPBX

1. Start the virtual machine

Starting button

1. Select "[8] Install"

Installation process

1. Enter the name of the disk on which MikoPBX will be installed

In our case - sdb, enter its name and press Enter

Installation process

1. Confirm the disk selection: enter y

Installation process

1. Select a disk for recording conversations

In our case - sdc, enter its name and press Enter

Installation process

1. The system will reboot and MikoPBX will be ready for use.

MikoPBX Console

First connection to MikoPBX

1. The PBX displays the IP address of the station by which you can connect to it

IP address of MikoPBX

1. Enter the IP address of the station in the browser bar and the MIkoPBX login menu will open:

Default creditionals for the first login are:

Username - admin

Password - admin

System will ask to change them after the first login. It is important for the security of your MikoPBX.
