# Подключение к АТС с помощью WinSCP

1. Скачайте установщик программы WinSCP с официального сайта по [ссылке](https://winscp.net/eng/download.php)
2. Установите программу
3. В случае, если ранее вы подключались к MikoPBX по SSH соединению с помощью PuTTYб программа сразу предложит импортировать соединение

<figure><img src="https://3704471835-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MPK4TuzRBnP7rt8htho-887967055%2Fuploads%2Fgit-blob-a274c5f5bc14b749c3b78fe0424ba335b08557ed%2F1%20(10).png?alt=media" alt=""><figcaption></figcaption></figure>

4. Если же подключения не было - нужно заполнять данные вручную

<figure><img src="https://3704471835-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MPK4TuzRBnP7rt8htho-887967055%2Fuploads%2Fgit-blob-c97fe61b08005d9ba7e6b1c1b6e45a90f29e9fb0%2F2%20(45).png?alt=media" alt=""><figcaption></figcaption></figure>

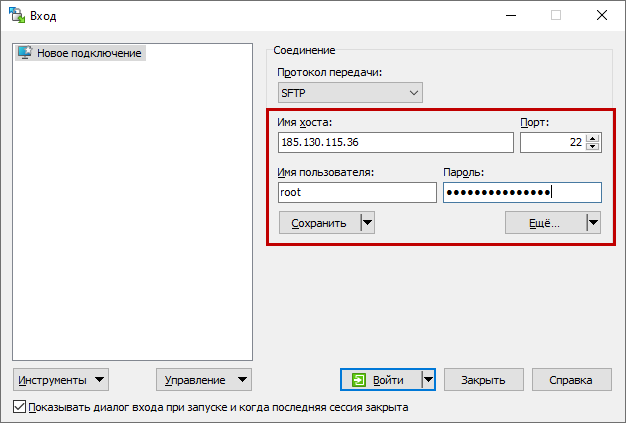

5. **Имя хоста** - IP адрес MikoPBX\
   **Порт -** порт для подключения по SSH по умолчанию это 22\
   **Имя пользователя** - всегда нужно указывать root\
   **Пароль -** SSH пароль от Вашей **MikoPBX**

<figure><img src="https://3704471835-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MPK4TuzRBnP7rt8htho-887967055%2Fuploads%2Fgit-blob-09ed0265463ab008ff006e9dee2dffa31a02bbaa%2F3%20(19).png?alt=media" alt=""><figcaption></figcaption></figure>

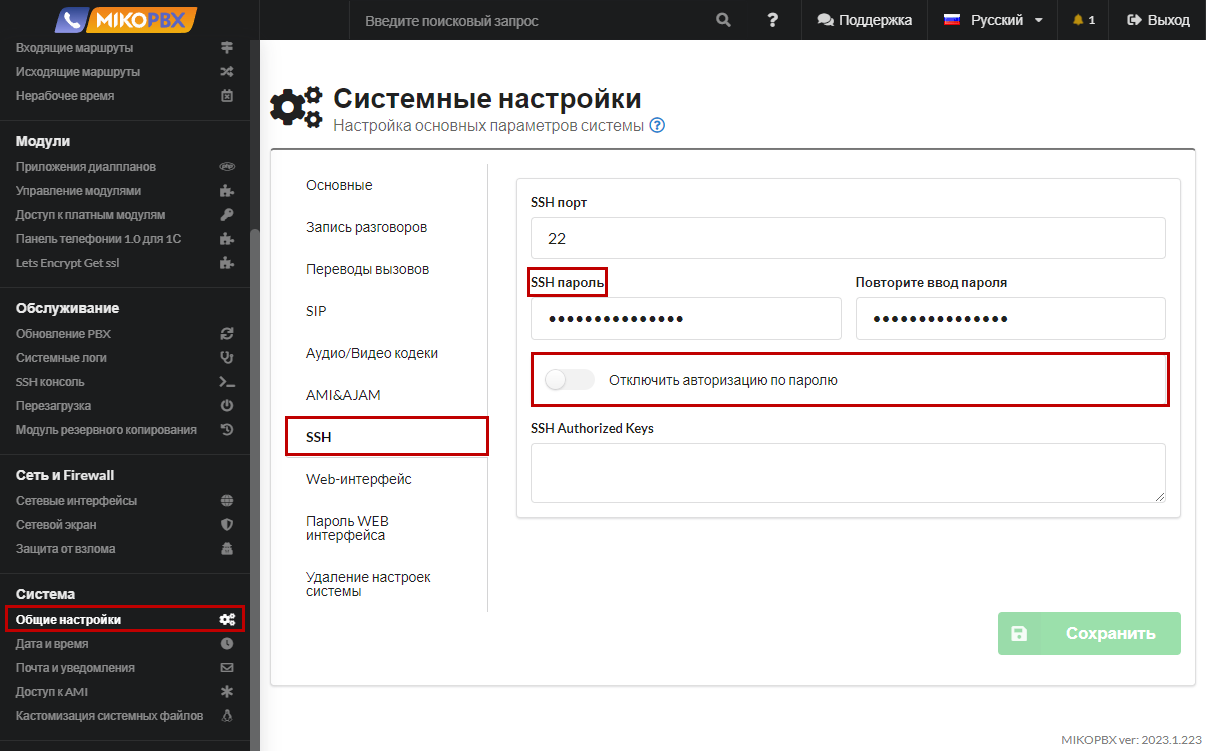

6. Перед подключением вам необходимо разрешить авторизацию по паролю в веб-интерфейсе MikoPBX, а также задать пароль для подключения: для этого перейдите "**Общие настройки**" -> "**SSH**"

<figure><img src="https://3704471835-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MPK4TuzRBnP7rt8htho-887967055%2Fuploads%2Fgit-blob-6b984d43103cee2f5b6c7fdebee7e609574abf19%2F13%20(12).png?alt=media" alt=""><figcaption></figcaption></figure>

7. Для подключения нажмите "**Войти**"

<figure><img src="https://3704471835-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MPK4TuzRBnP7rt8htho-887967055%2Fuploads%2Fgit-blob-7e92f3320de8e5ef5b0a35904519547f60955a21%2F4%20(23).png?alt=media" alt=""><figcaption></figcaption></figure>

8. После успешного подключения у вас откроется корневая папка MikoPBX

<figure><img src="https://3704471835-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MPK4TuzRBnP7rt8htho-887967055%2Fuploads%2Fgit-blob-0159d58ade54bf6f2d8bae34d265302e712d0705%2F15%20(3).png?alt=media" alt=""><figcaption></figcaption></figure>


---
