  1. User manual
  2. Modules

Registration in the modules marketplace

Description of the registration process

Last updated 5 months ago

Was this helpful?

General Information

Registering in the MikoPBX Module Marketplace is not required for the system’s basic functionality. You can fully utilize MikoPBX for handling calls without registration or installing additional modules. However, we recommend registering in the marketplace to expand your system’s capabilities.

Registration gives you access to additional modules and extensions. These include both free modules (moved out of the core system for easier initial setup) and paid modules from us and third-party developers. If you are a developer, you can contact us at developers@mikopbx.com to get instructions on creating and adding your module to the Marketplace.

MikoPBX is a free solution and does not require registration. The absence of a license does not impact call functionality. You can register or cancel your Marketplace registration anytime.

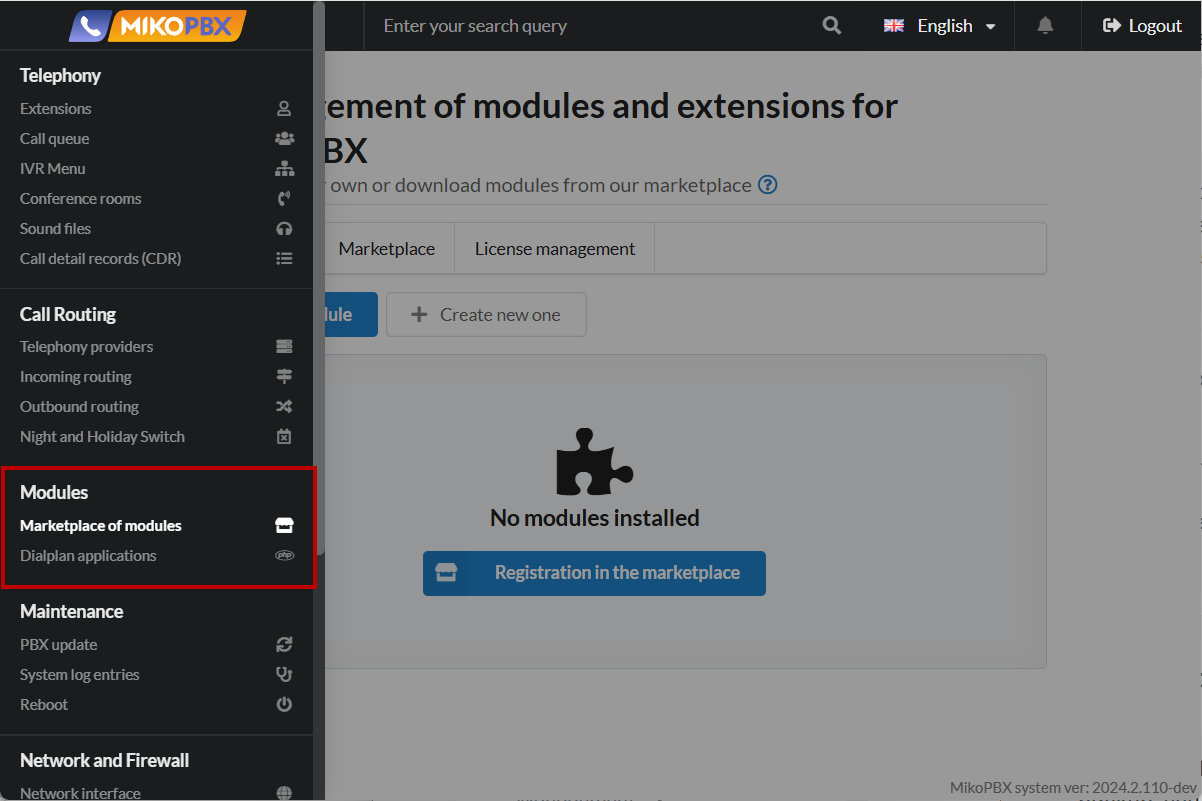

To begin the registration process, navigate to "Modules" -> "Marketplace of modules":

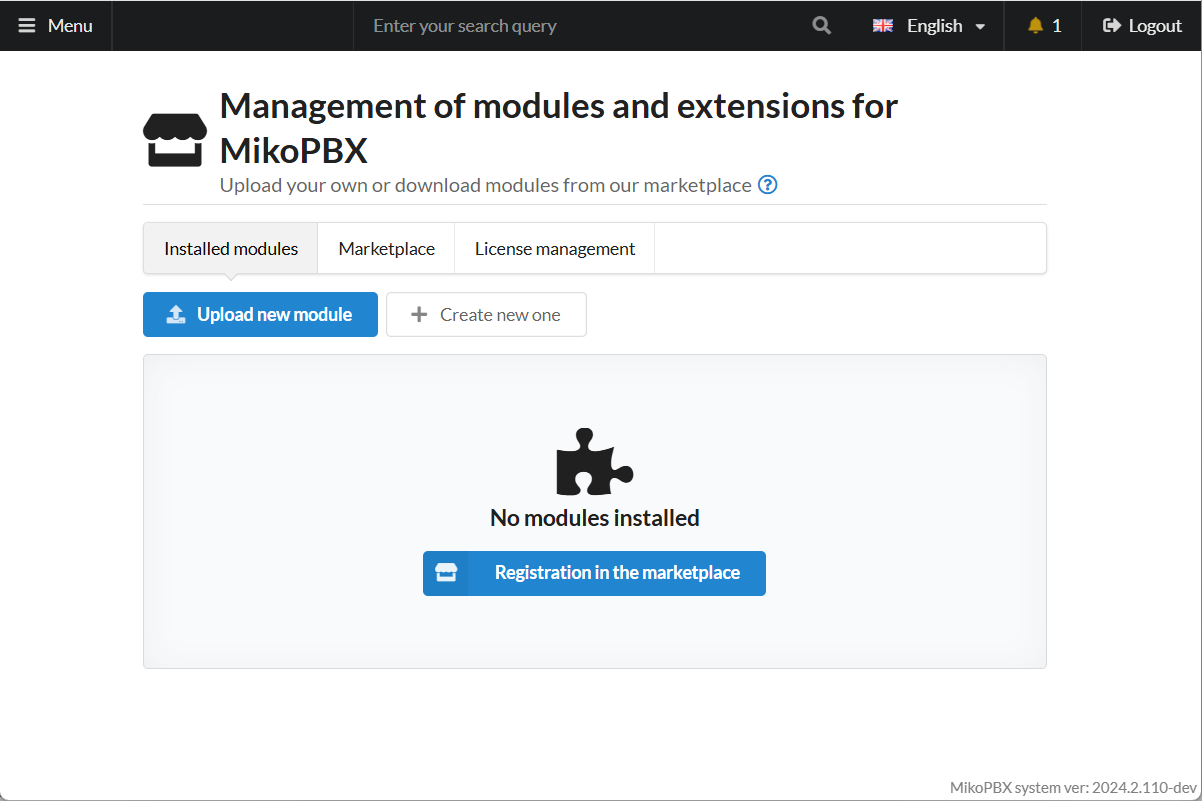

If you are not registered in the Marketplace, the section will look as follows:


Registration Process

One license key is issued per company. If your company uses multiple MikoPBX instances, a single registration is sufficient.

To start the registration process, click the Register in Marketplace button:

The license key stores all your licenses for MikoPBX products. If you already have a key, you can enter it in the corresponding field. If you've forgotten your key, search your email inbox for messages from lic@miko.ru

If you don’t have a key, you can generate a new one by completing the registration form:

  • Organization Name – Enter your company/organization name.

  • Contact Email – Enter your organization’s email address.

  • Contact Person – Enter the name of the contact person.

  • Contact Phone (optional) – Provide a contact number.

  • Unique Company Identifier (e.g., Tax ID, VAT) (optional).

Click Register.

Upon successful registration, you will see the following screen:

  • A notification confirming the system's registration.

  • The license key field will display a blurred value by default. Hover over it to view or copy the key.


License Management

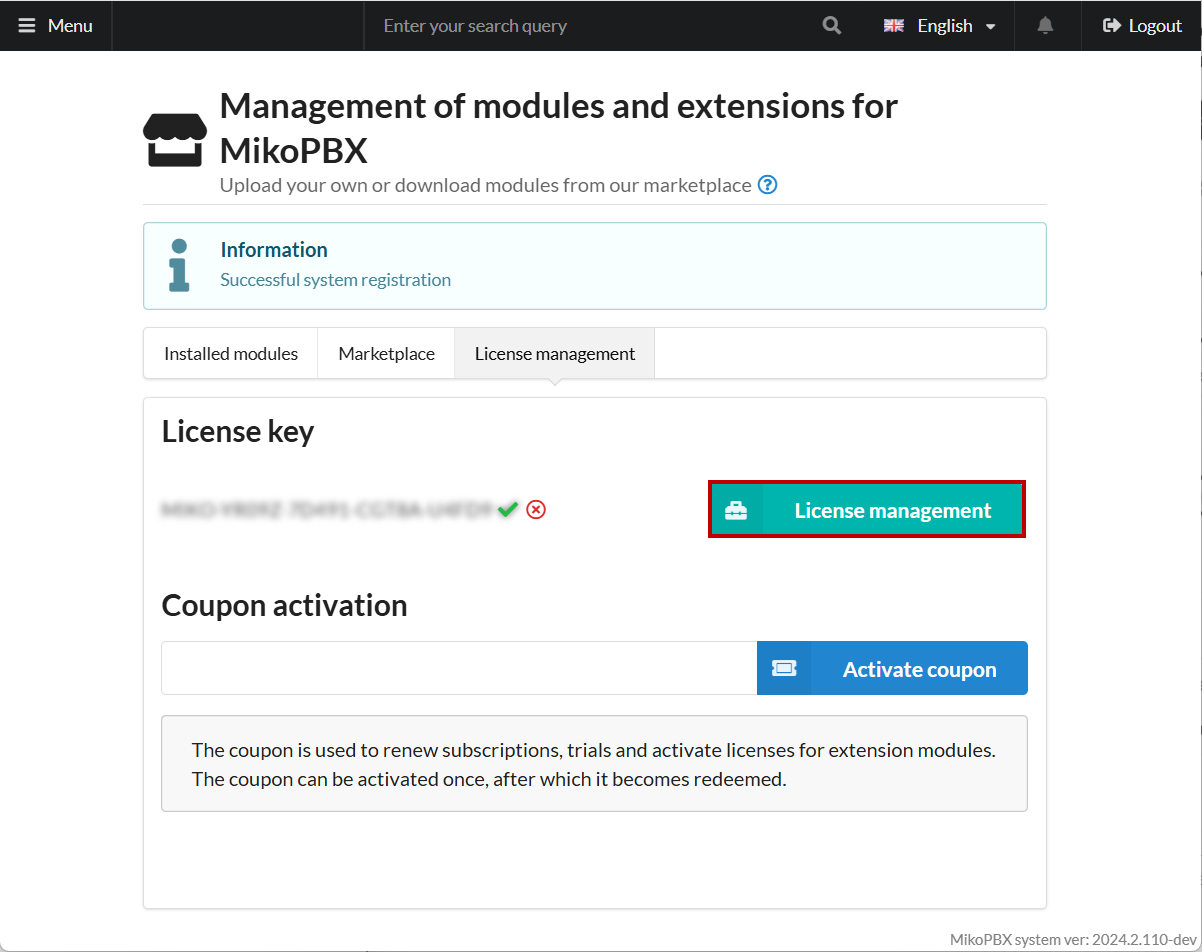

To manage your license, go to Marketplace -> License Management and click the corresponding option:

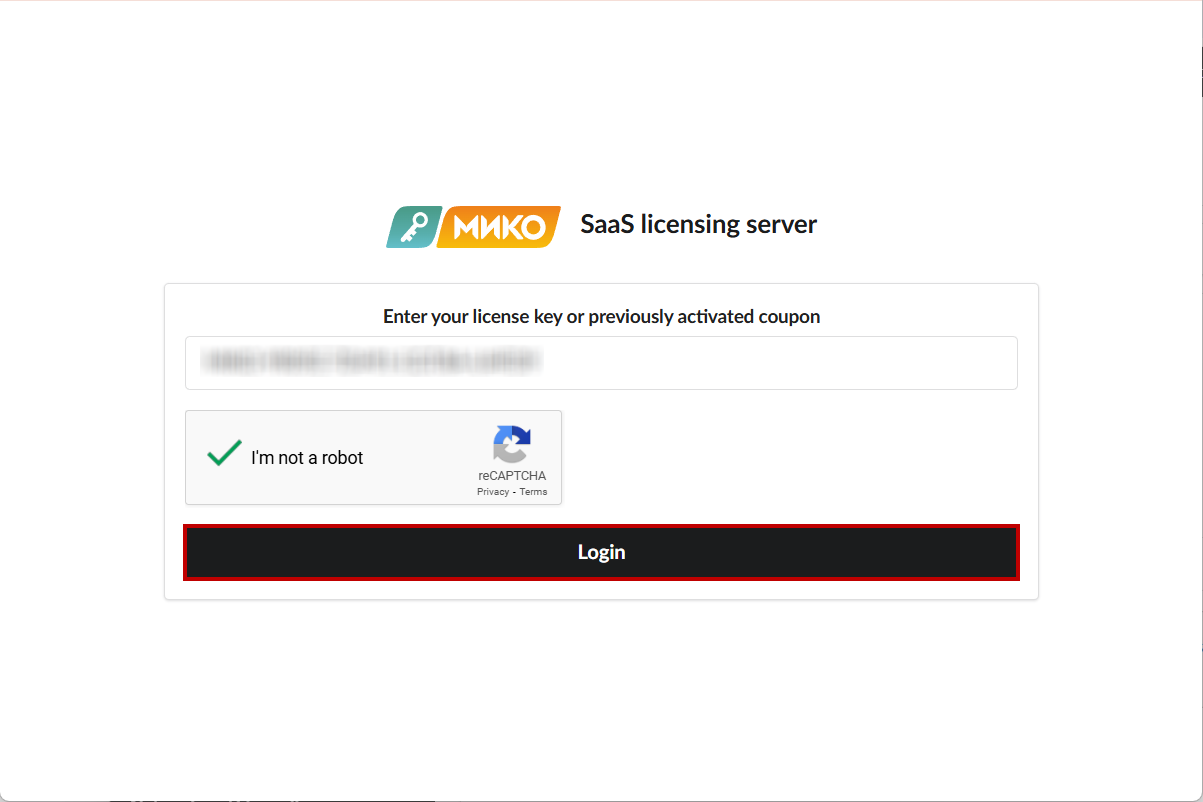

Enter your license key in the Enter your license key or activated coupon field and click Login:

You will access a system with nine sections:

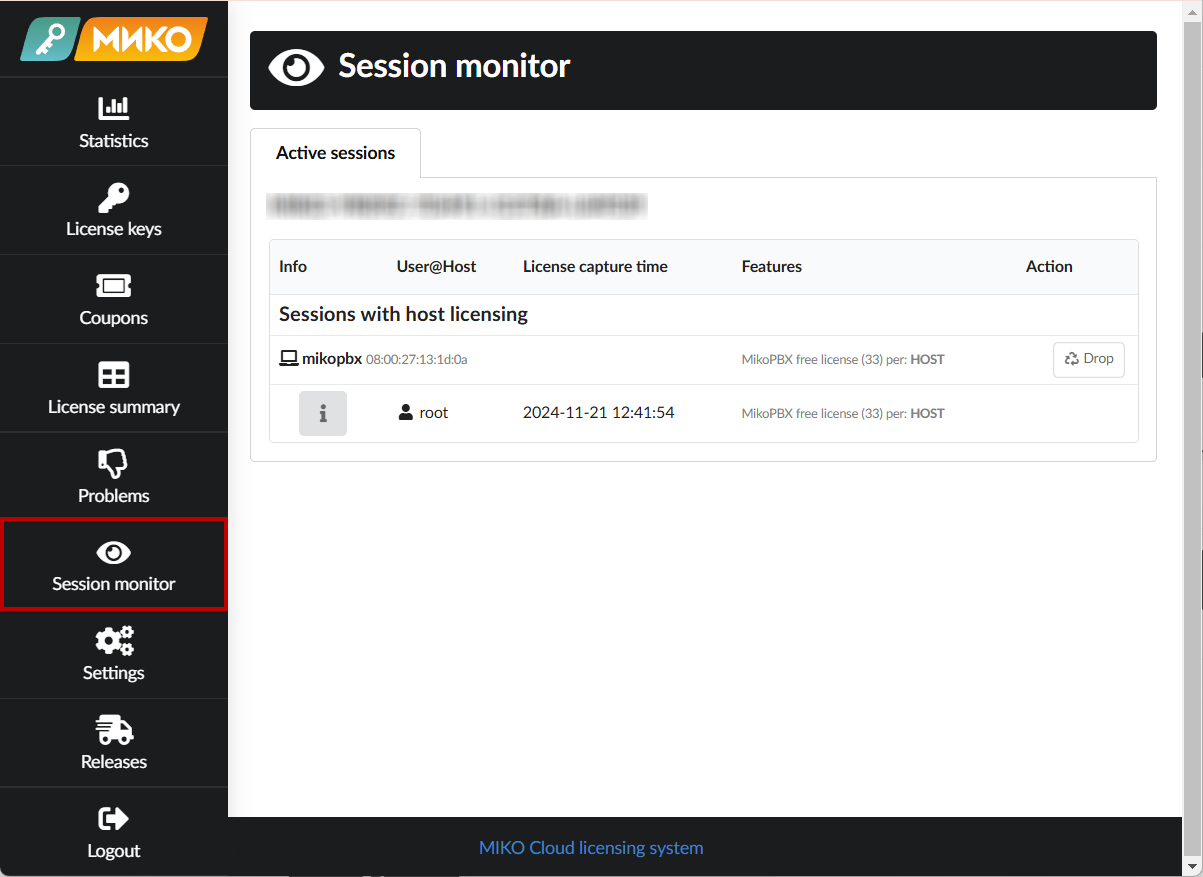

Go to the Session monitor section:

In the Info column, click the i button for each binding to view detailed host information.

In the Action column, use the Drop button to unbind the license from the current host.


Potential Issues

Registration Issues

If you encounter issues during registration, check for internet access to the MikoPBX server. Ensure connectivity to lic.miko.ru and lic.mikopbx.com over port 443 (HTTPS). Verify firewall settings and network permissions.

Strikethrough Key Icon

MikoPBX periodically connects to licensing servers to verify installed modules. If a module license becomes unavailable, the module will be disabled, and a strikethrough key icon will appear next to its name.

If you move MikoPBX to another host or restore it from a backup, you will need to reset license bindings in the .

You will be redirected to the :

License Manager
SaaS Licensing Server
Section "Modules" -> "Marketplace of modules"
Marketplace section if registration is not completed
The "Registration in the marketplace" button
License key
Registration form for the marketplace
Successful registration in the marketplace
"License Management" element
SaaS Licensing Server Page
Entered license key
SaaS System
"Session monitor" Section
Host information
Resetting the license on the host
