# PhonerLite

1. Download the softphone installer from the official website at the [link](http://phonerlite.de/download_en.htm). Install it by following the instructions of the installer.

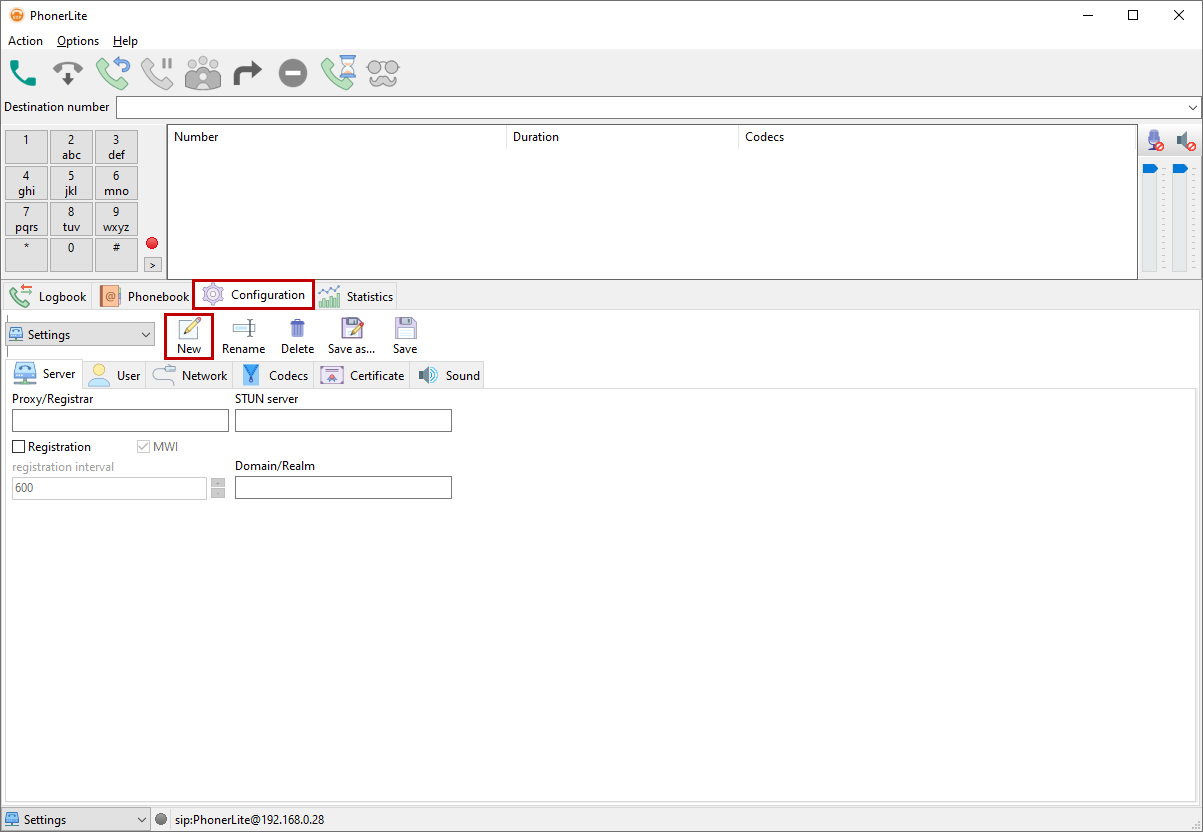

2. After installation, run PhonerLite. Creating a new SIP account:

Go to **"Configuration"** -> **"New"**

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2F6pI7O3xozsD9l8BuGzuW%2F1.png?alt=media&#x26;token=559dacc7-75f8-4ced-b01c-ccbe660cf16b" alt=""><figcaption></figcaption></figure>

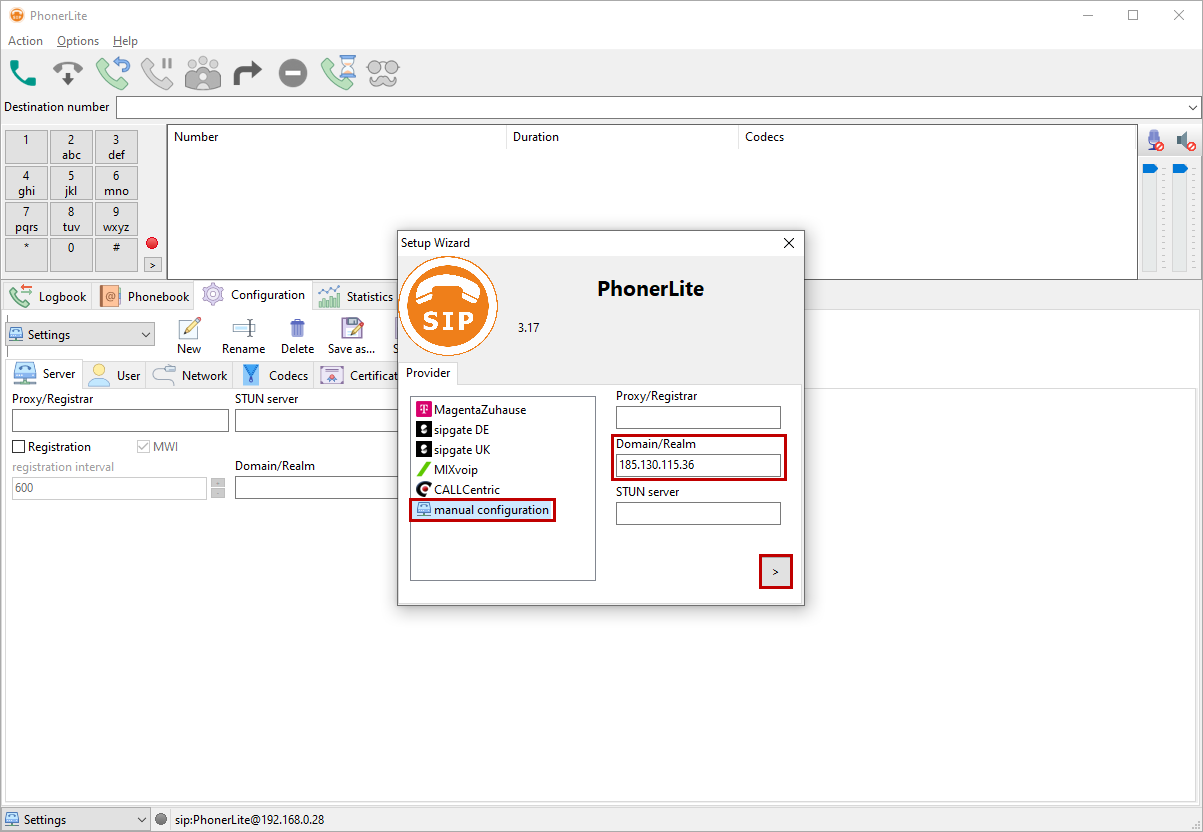

3. Select "**Manual Configuration**"

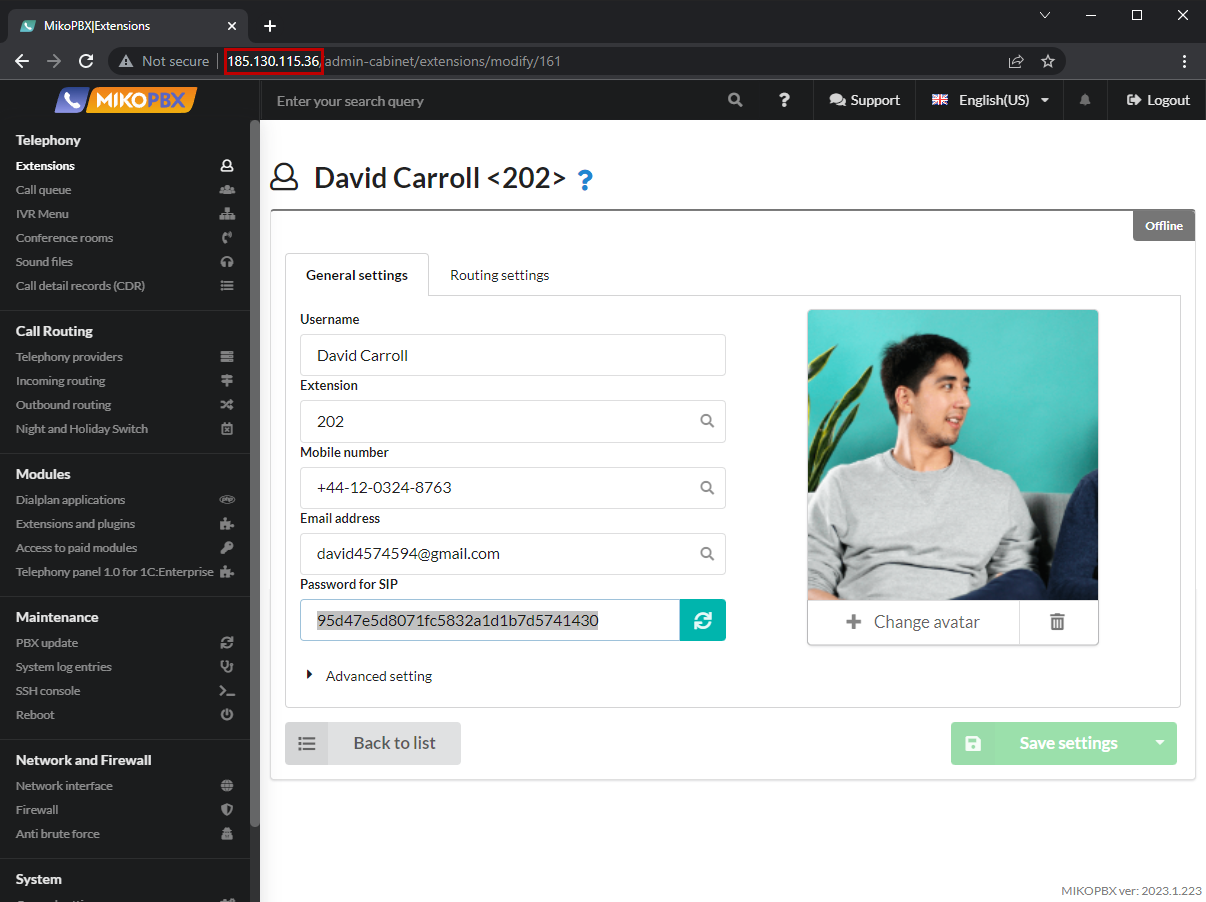

In the "**Domain/realm**" field, enter the **IP address** of the MikoPBX you are going to connect to

Click the arrow to continue

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2F0uFtnWTp7znsMt3ofYGu%2F2.png?alt=media&#x26;token=8111526a-bb7f-4c3c-ae2a-aa17c9ee29bd" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FZpaFAJovCHWIqgIPJmlC%2F8.png?alt=media&#x26;token=56f3ccc4-6af4-4b93-996c-5f2cae62b82a" alt=""><figcaption></figcaption></figure>

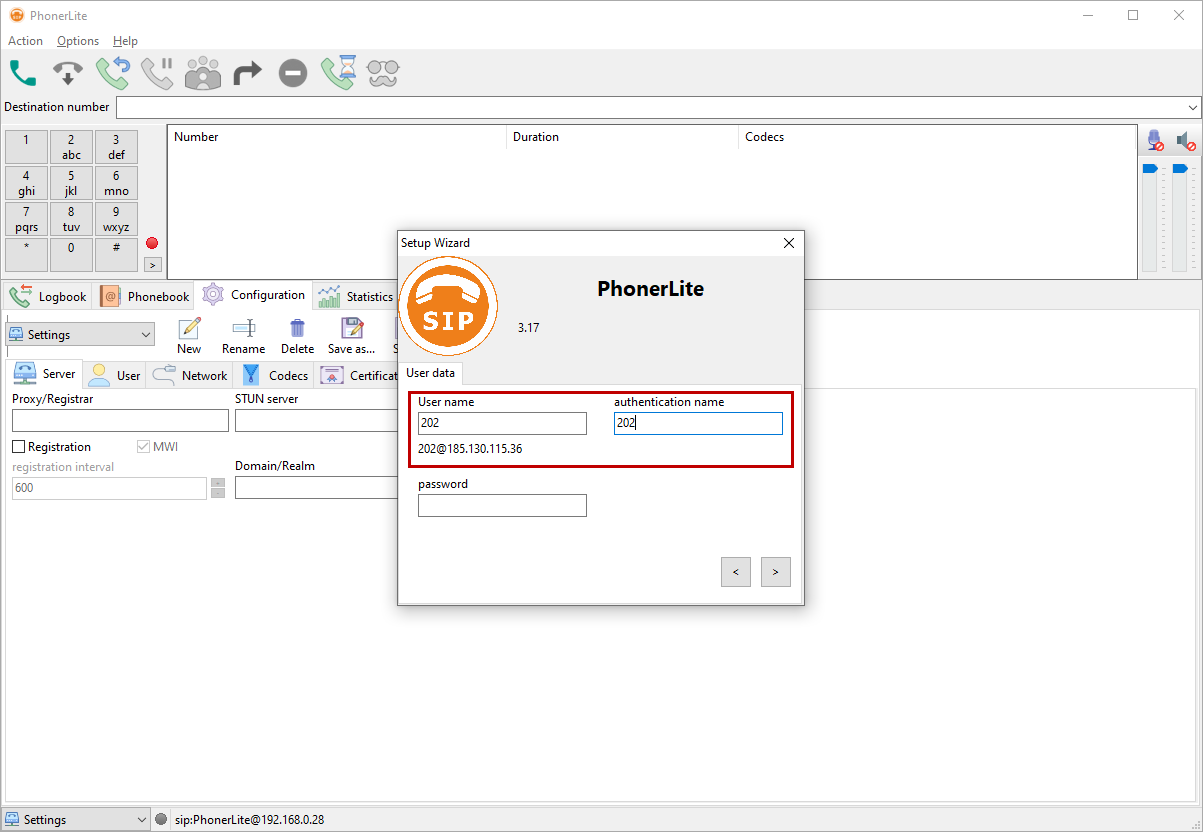

4. In the "**User name**" field and in the "**Authentication Name**" field, enter the "**Extension**" of the employee from MikoPBX

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FQ3hl1TlR5NLMmHimrZZx%2F3.png?alt=media&#x26;token=ba220dba-144f-4f7b-94d1-86b47428f04e" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2F3HGNOjtNkiMDOz5HxSmL%2F4.png?alt=media&#x26;token=fc5d78df-bc68-4e5f-89e1-9398c8e735b5" alt=""><figcaption></figcaption></figure>

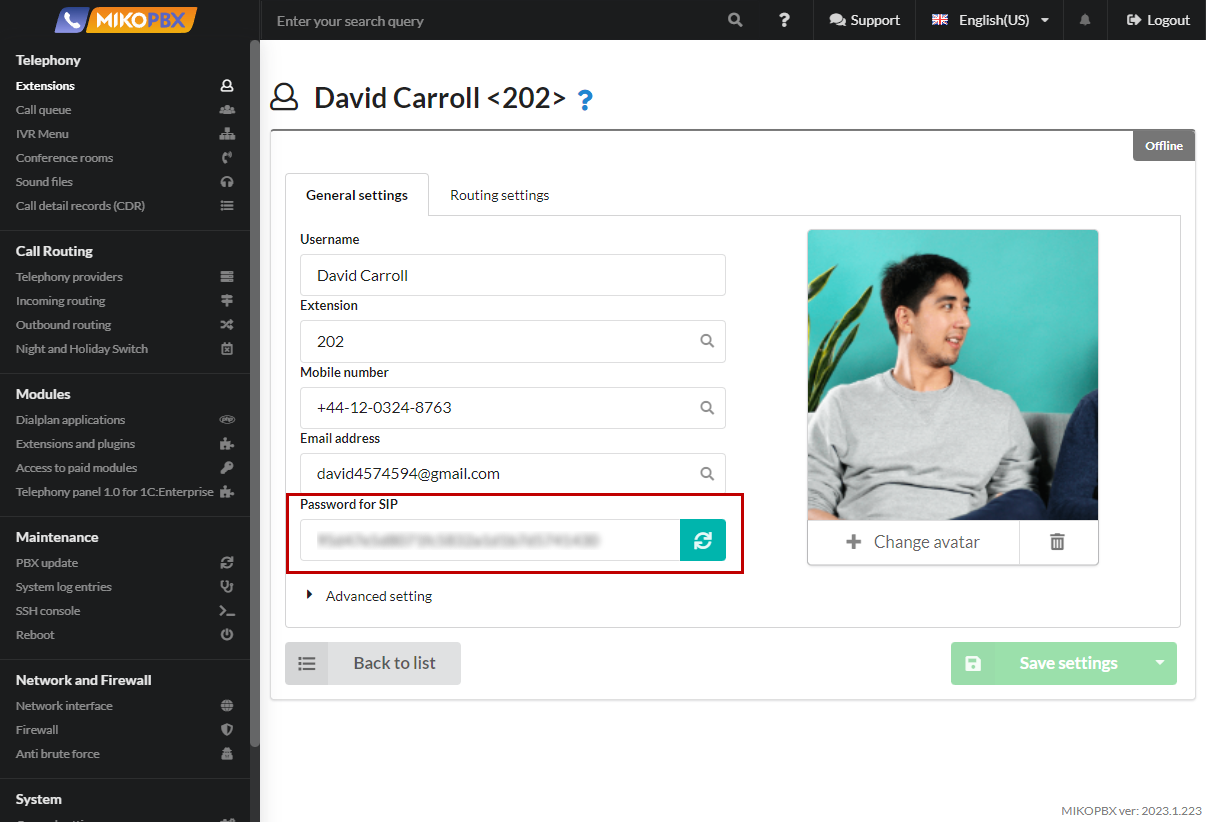

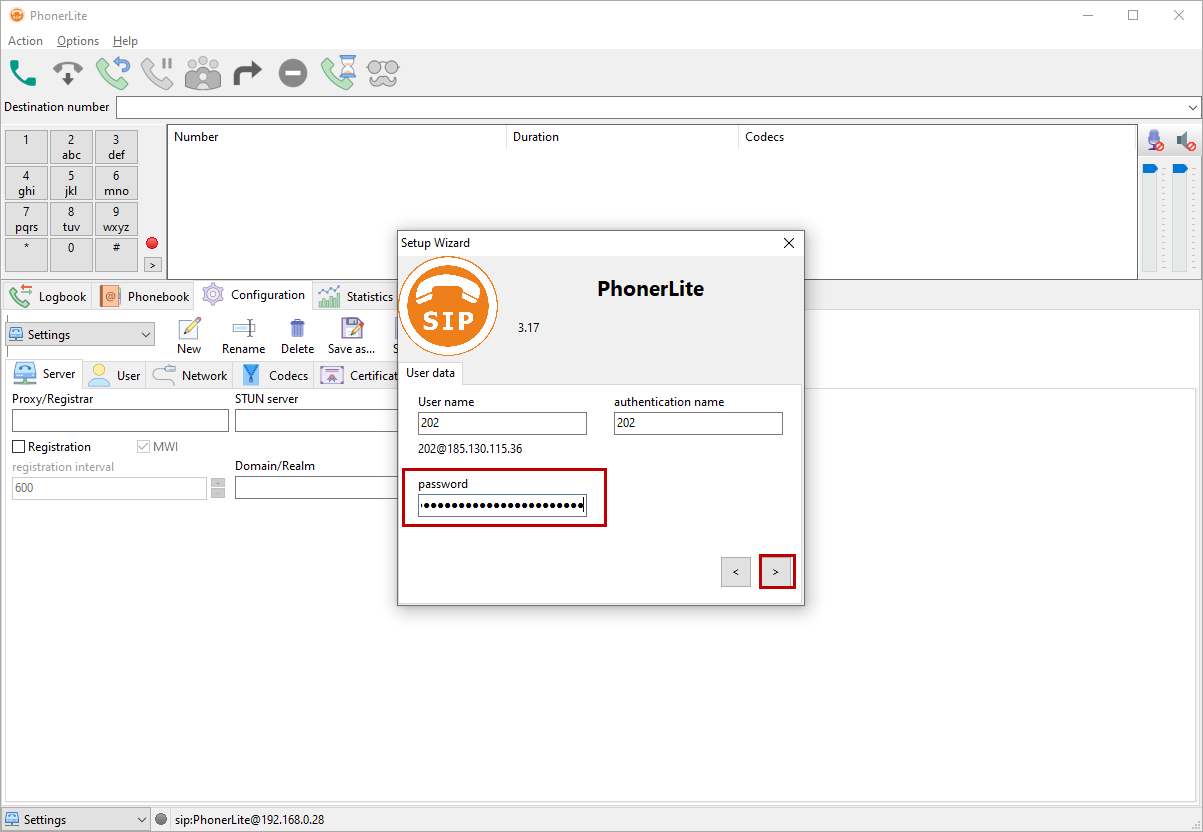

5. In the "**Password**" field, enter the "**SIP Password**" from MikoPBX

Click the arrow to continue

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FByxzIY6MCjOnKTYZMrVi%2F4.png?alt=media&#x26;token=89140baa-09a6-4e59-8ba1-7d6667fe21f5" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2F1dgzuxXjue6kJRTKaASV%2F5.png?alt=media&#x26;token=fe63c279-9510-48e4-89d9-0b11d14c913d" alt=""><figcaption></figcaption></figure>

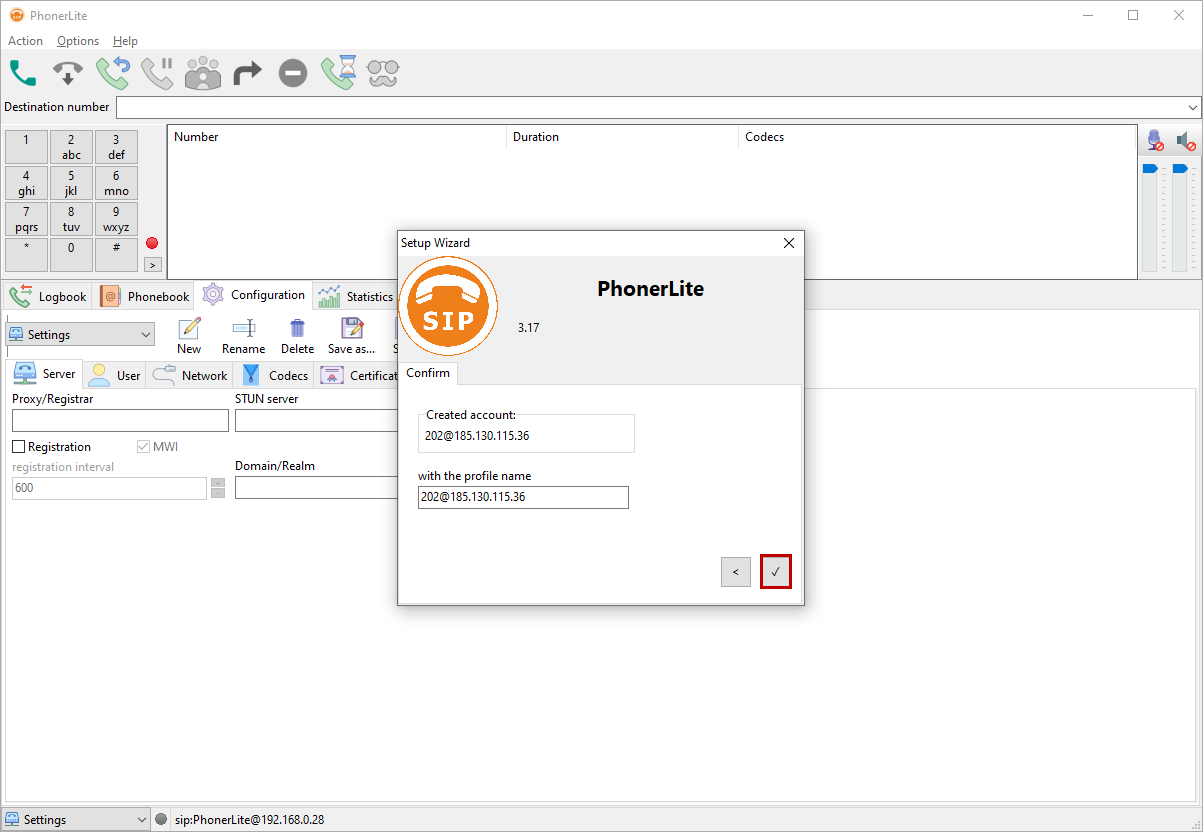

6. Click on the check mark to continue

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FZrIzaMwVGQs2UZSDsrcO%2F5.png?alt=media&#x26;token=6557e1c6-543f-4879-92f4-128edbb20ff1" alt=""><figcaption></figcaption></figure>

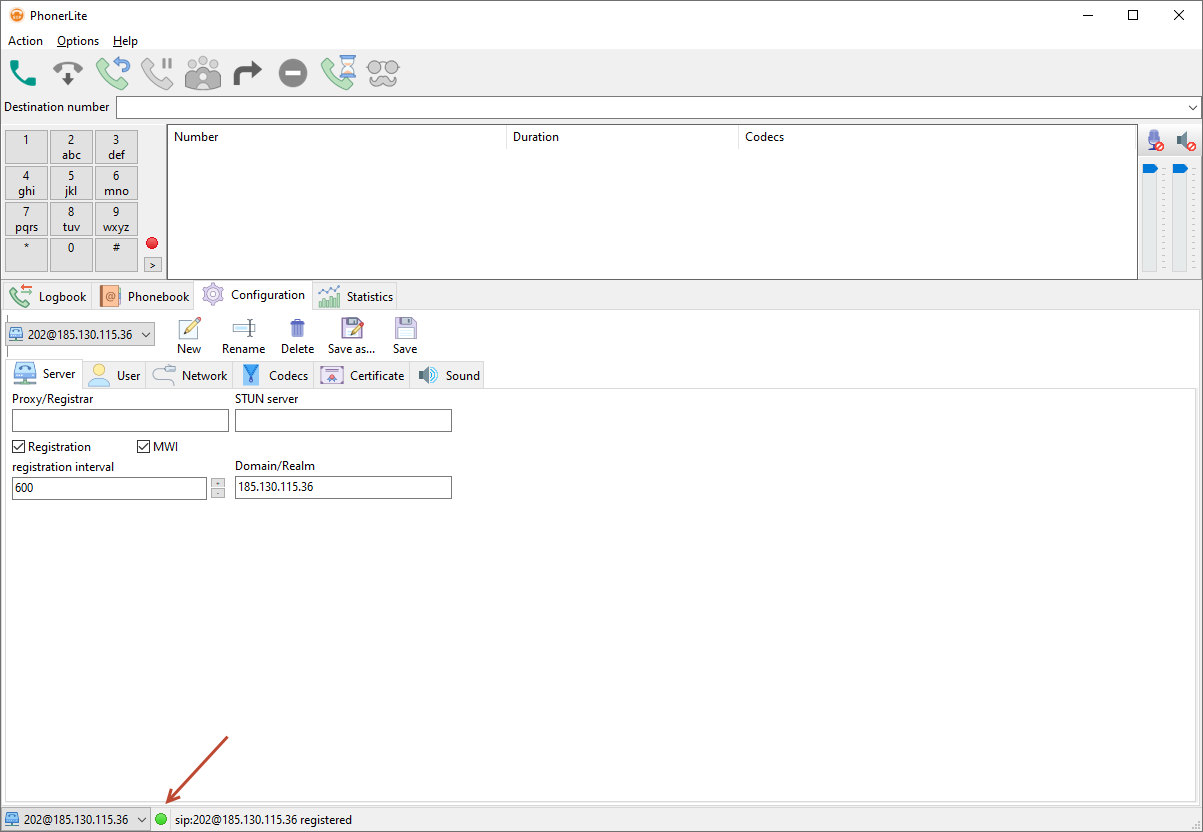

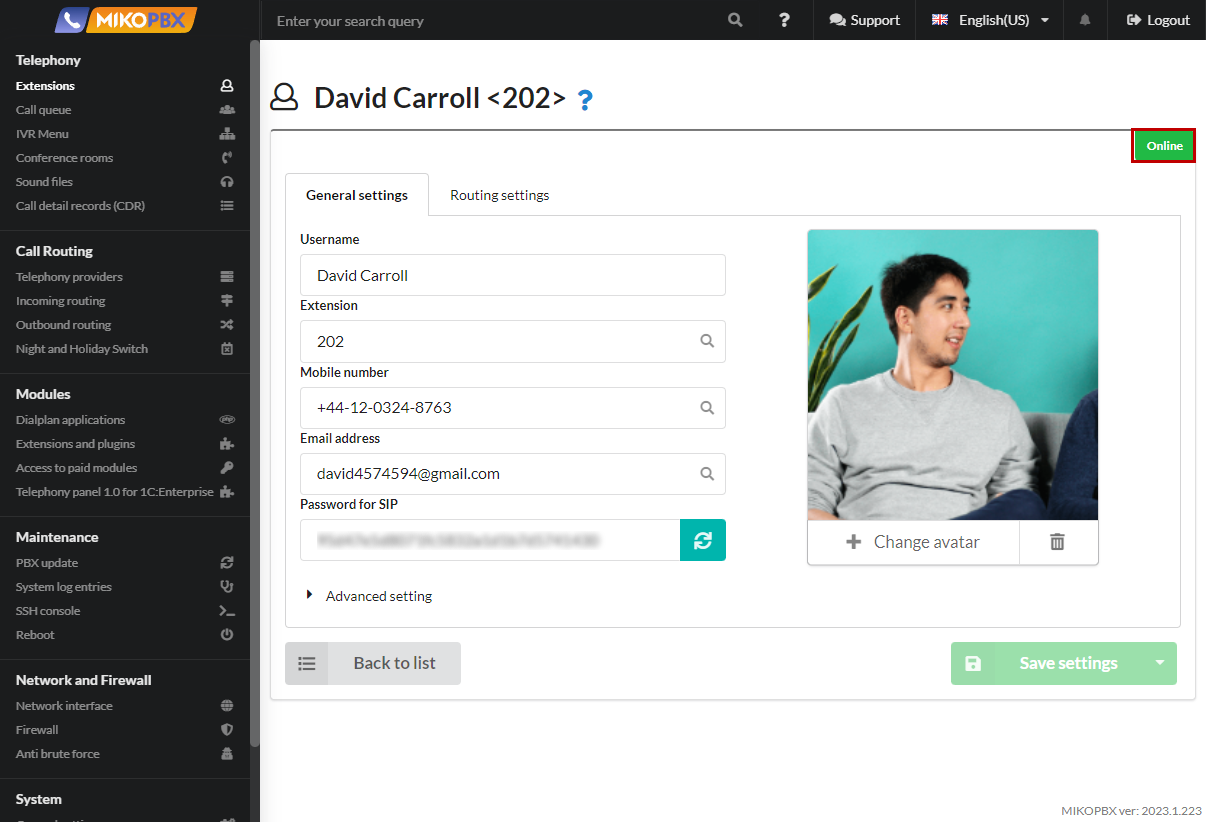

The green indicator at the bottom indicates successful authorization. Also, the status <mark style="background-color:green;">Online</mark> should be displayed on the PBX for this internal number.

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FzQCGUfi9082gzerTt0Ou%2F6.png?alt=media&#x26;token=e4799a71-7bf4-403d-b7b4-fe967d917837" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2Fe9NI4lbWRthLIH0o4KuJ%2F11.png?alt=media&#x26;token=14485fb2-874c-4e27-9c64-1af809375682" alt=""><figcaption></figcaption></figure>
