# Zoiper

1. Download the softphone installer from the official website using the [link](https://www.zoiper.com/en/voip-softphone/download/current). Install it following the instructions of the installer.
2. Launch the installed softphone. You will see the following window. It prompts you to enter **login** and **password**.

![](https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2Fu9LOlrTBNOcRee6kICJB%2F2.png?alt=media\&token=2b3e8827-2b42-4928-a3af-c5323b816b18)

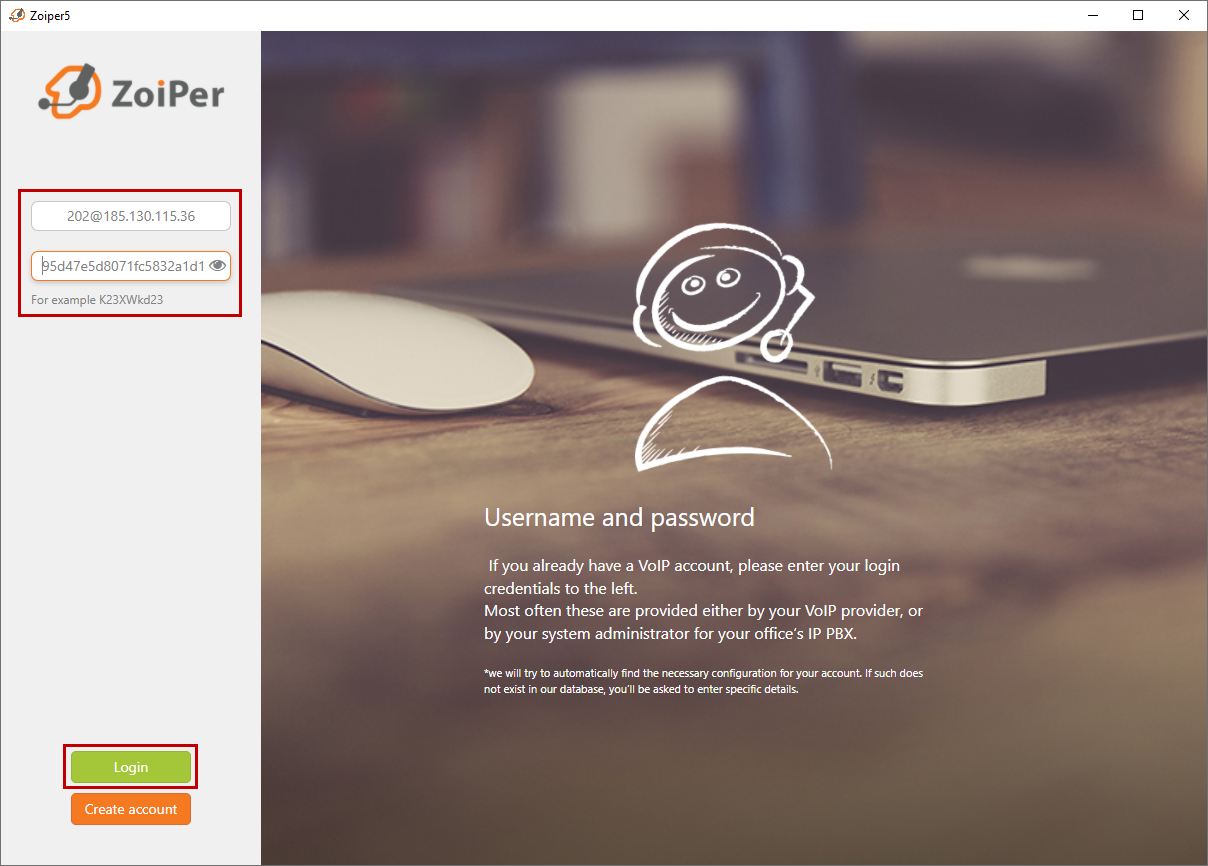

3\. Login into Zoiper

**login** - \<extension number>@\<PBX Address>

**password** - internal number password.

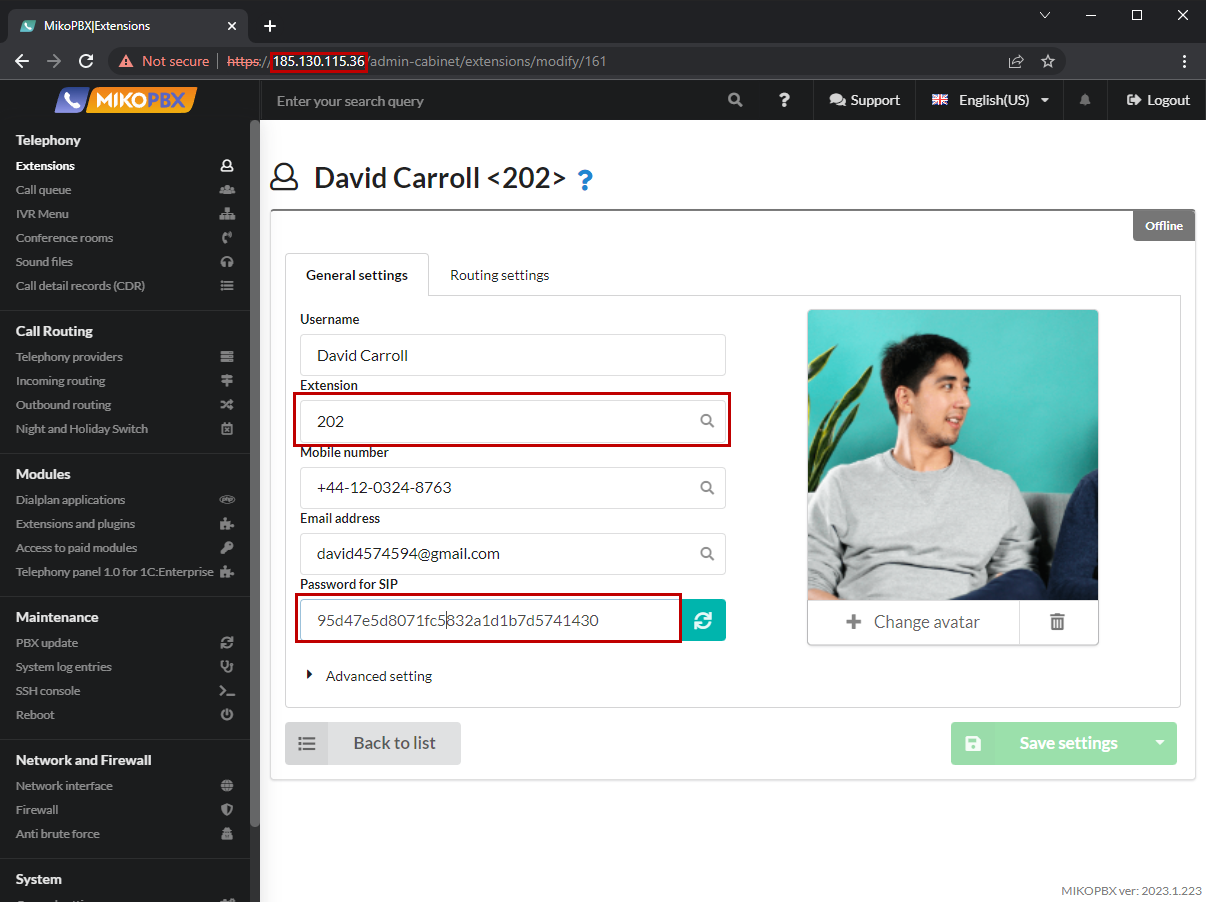

Go to the PBX web interface.

Go to the employees section, select the desired internal number and copy the necessary data.

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FIxFI1ZM7gddJdpsxPXkJ%2F3.png?alt=media&#x26;token=4007d453-8a71-4ec9-9b1f-2ab3f8cbdc5d" alt=""><figcaption></figcaption></figure>

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FktNIB8bMMIdDs2nPJWOZ%2F4.png?alt=media&#x26;token=f1163ee3-9983-4258-a874-afe232f19939" alt=""><figcaption></figcaption></figure>

Click **Login**.

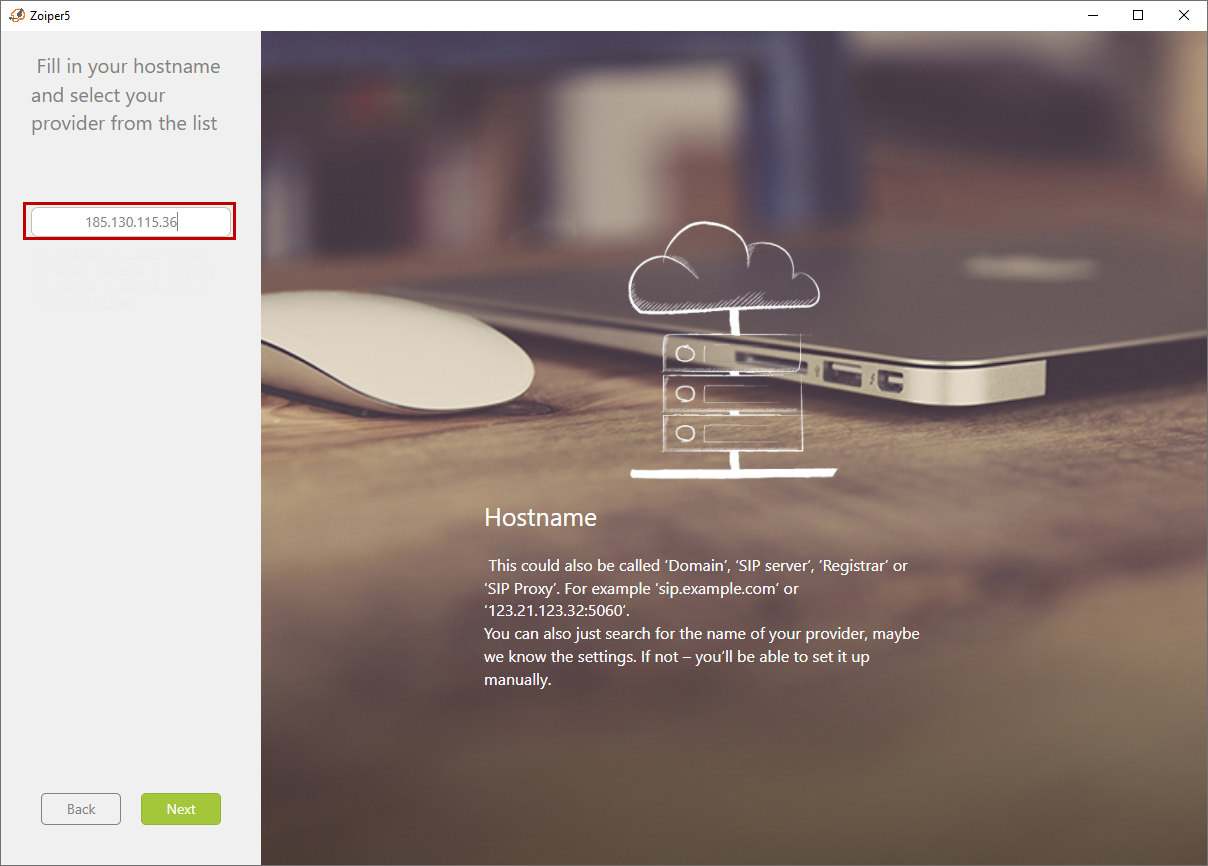

4\. On the offer **Fill In your hostname and select provider from the list**, make sure that the address of your PBX is inserted in the field and click Next.

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FtHYNAmCaJXHZ28qQvSZH%2F5.png?alt=media&#x26;token=1851dadf-ad2d-46a8-98f0-469d844a0e37" alt=""><figcaption></figcaption></figure>

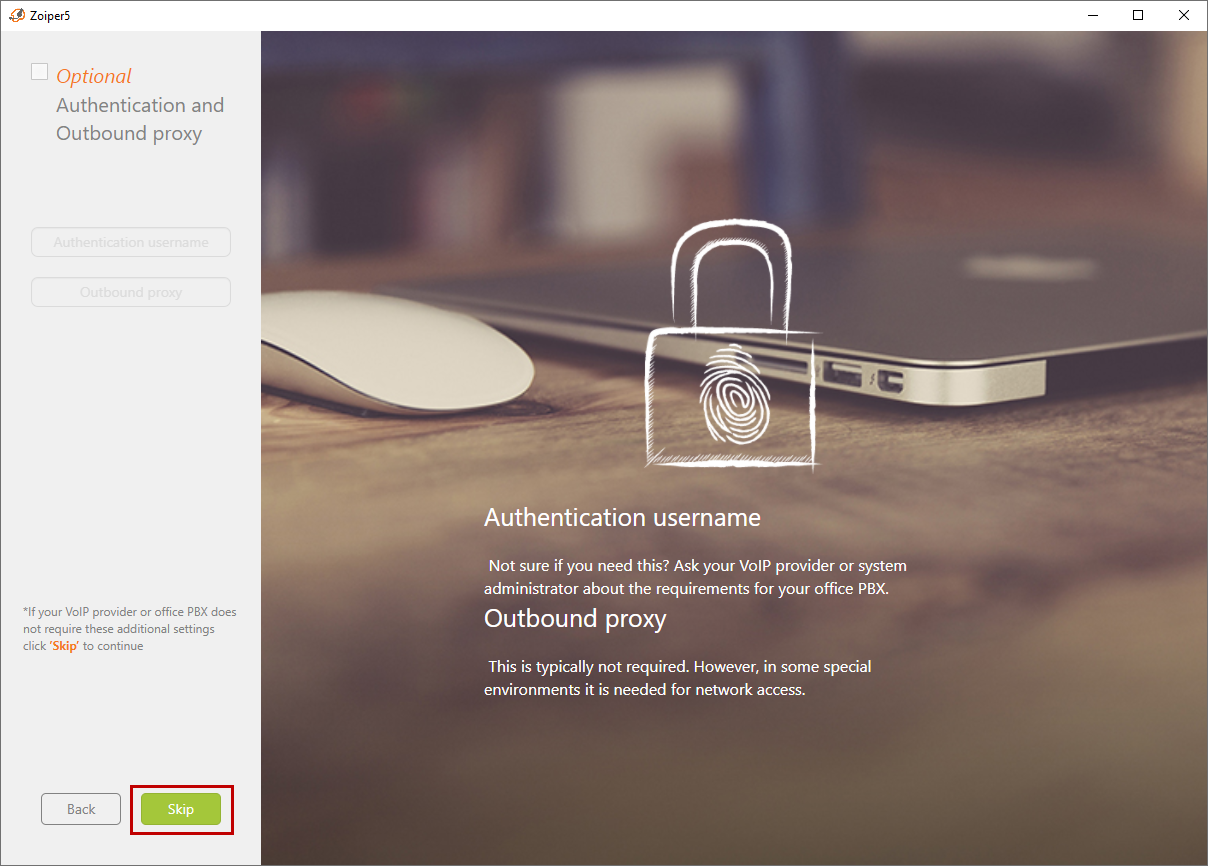

On the option **Authentication and Outbound proxy** without cocking the checkbox, click **Skip.**

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FY9lBQ35S2eGc6pprO4P2%2F6.png?alt=media&#x26;token=428c7f59-e804-4426-bb99-57ba84a34650" alt=""><figcaption></figcaption></figure>

On the configuration testing page, without waiting for the end, click **Next**. Agree to the warning.

![](https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FeC1fiAbtoY09diSkFpQe%2F7.png?alt=media\&token=7a7c0827-22a7-449a-ba51-52b4153473ff)

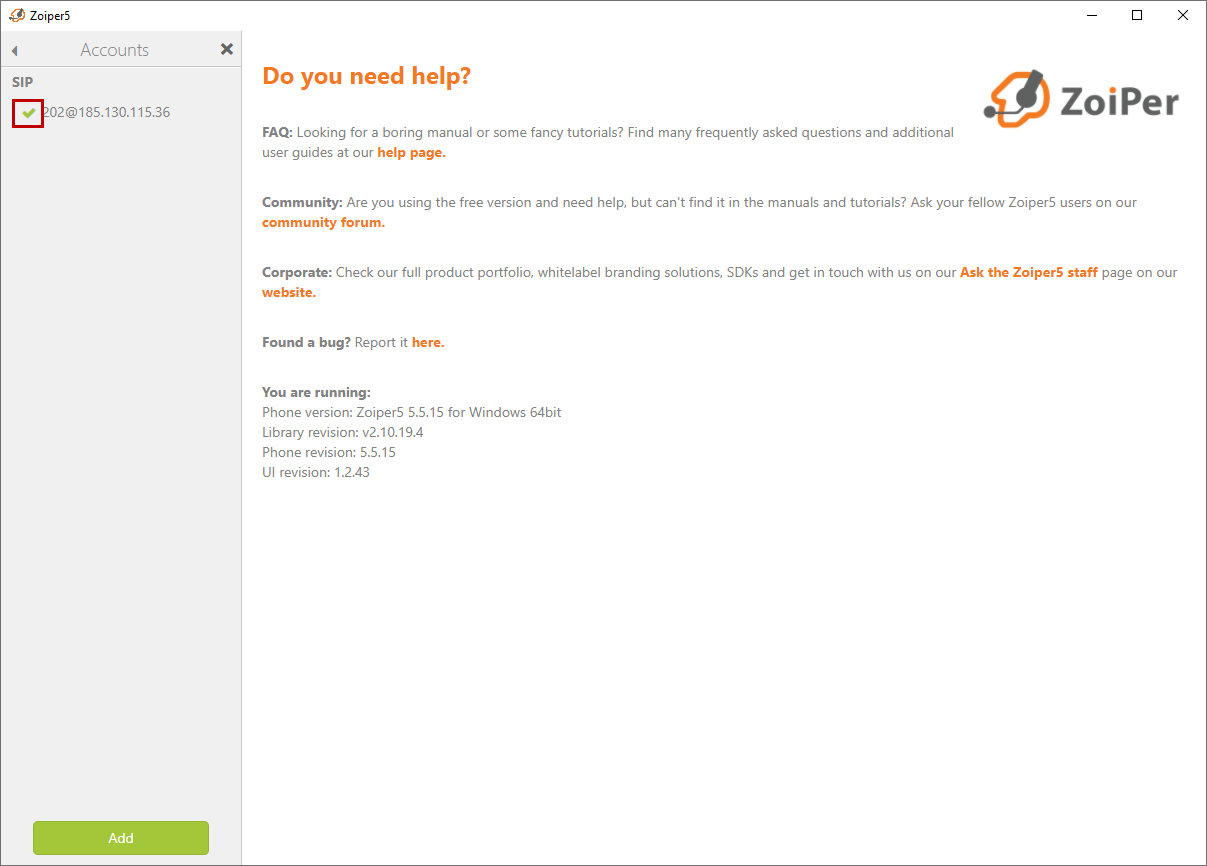

Successful authorization is indicated by a **green flag** to the left of the current account.&#x20;

<figure><img src="https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2Fs9qLfoZO25bkRjHFv4xm%2F8.png?alt=media&#x26;token=dfe6ca99-f901-44b3-96e2-52bf4e91f2d7" alt=""><figcaption></figcaption></figure>

Also, the status **Online** should be displayed on the PBX for this internal number.

![](https://835495363-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsZ8acWnNlSalIHQjMFu1%2Fuploads%2FAf9SETHQ4zSutzr0lKCn%2F10.png?alt=media\&token=a55232b4-6e5d-44ee-af5a-48205c0d5e4e)
